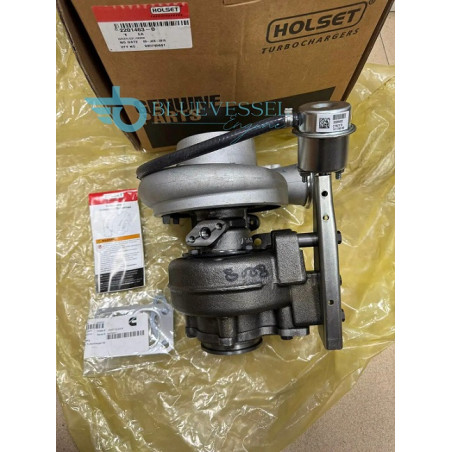

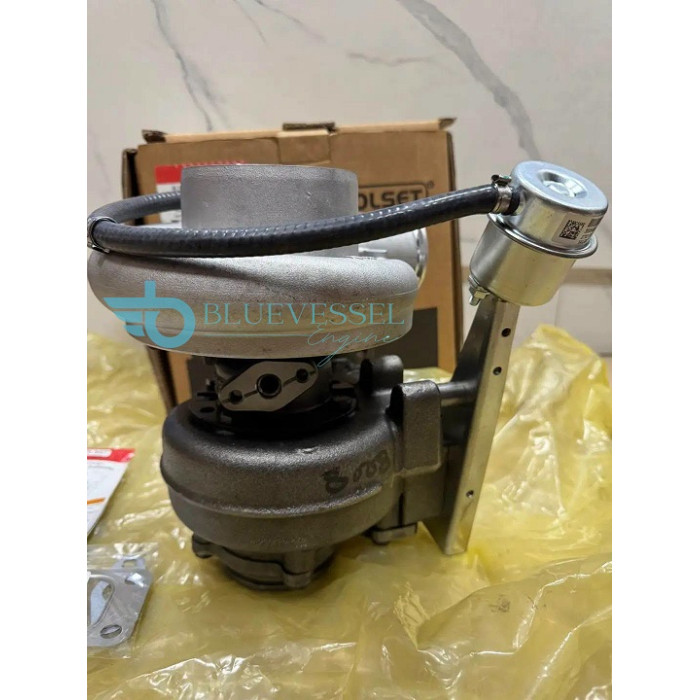

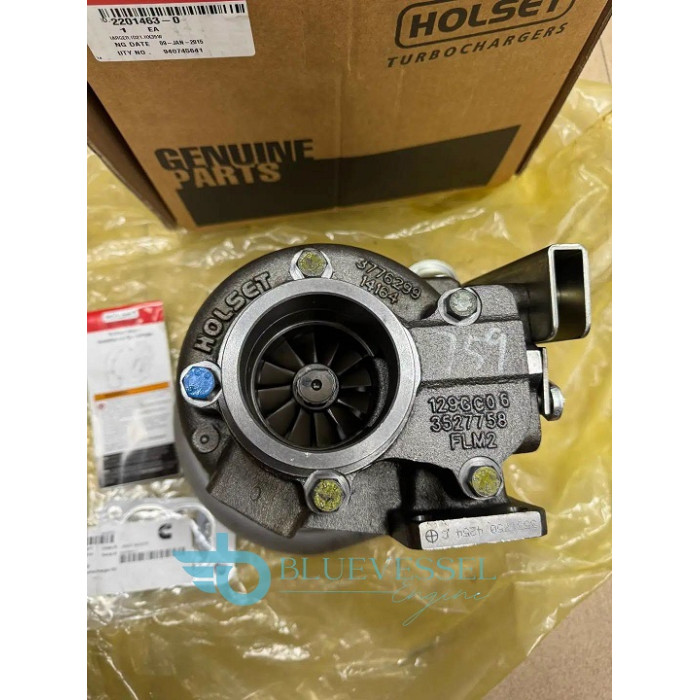

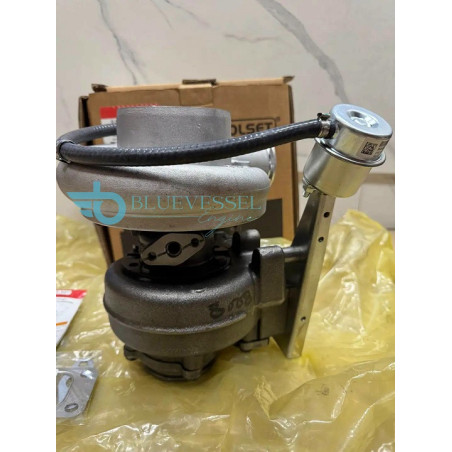

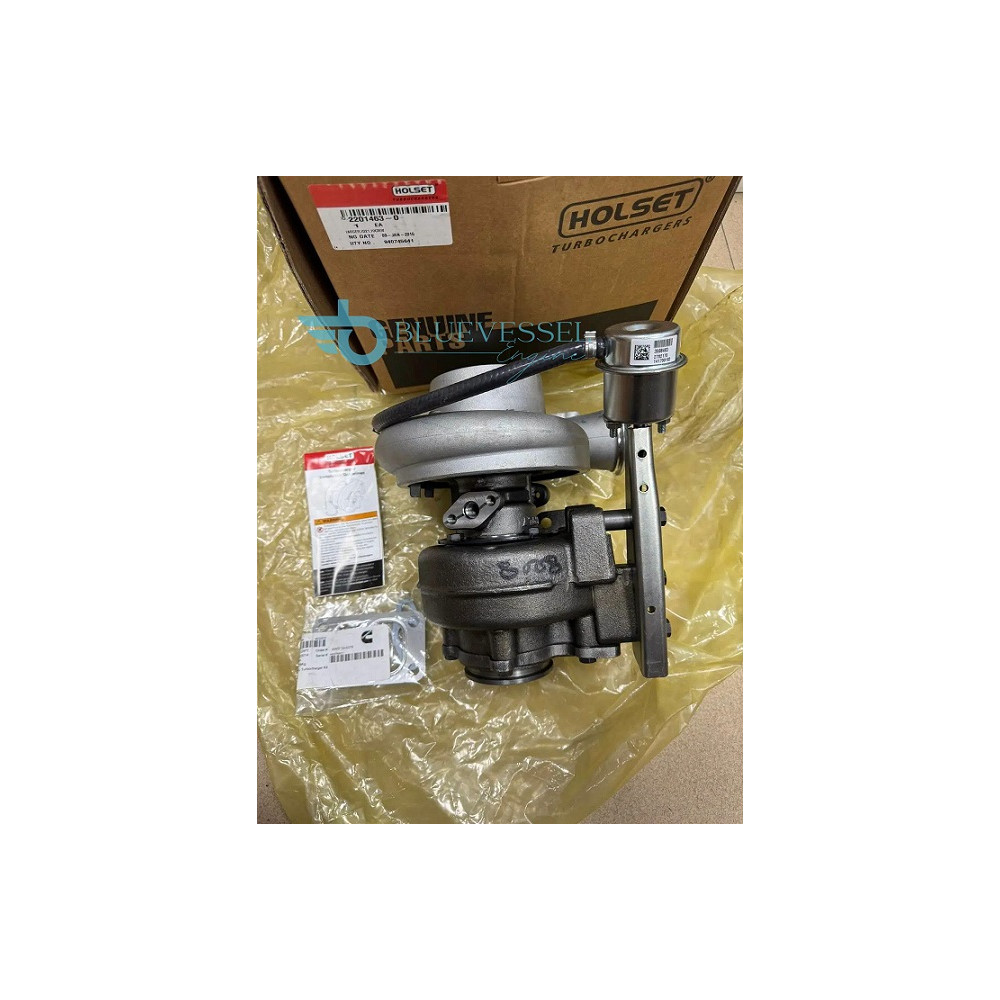

Holset HX35W Turbocharger

$400.00

Original Import Holset HX35W Turbocharger. Nice and Clean Condition !

Holset HX35W Turbocharger

The Holset HX35W specifications feature a compressor wheel inducer of 52–54 mm, an exhaust turbine inducer of 70 mm, and a 12 cm² twin-entry turbine housing. It is built for 5.9L–6.7L diesel engines supporting 300 to 500 horsepower.

COMPRESSOR SPECIFICATIONS
Compressor Wheel Inducer: 52 mm to 54 mm
Compressor Wheel Exducer: 77 mm to 83 mm
Blade Count: 7+7 or 7-blade configurations

TURBINE SPECIFICATIONS
Turbine Wheel Inducer: 70 mm
Turbine Wheel Exducer: 60 mm
Blade Count: 12-blade
Turbine Housing: 12 cm² (T3 divided / twin-entry)

GENERAL & OPERATIONAL FEATURES
Wastegate: Internal wastegate actuator (denoted by the "W" in HX35W)
Cooling: Oil-cooled bearing system (some variants include water-cooling options)
Common Application: Factory equipped on 1998.5–2002 Dodge Ram 5.9L Cummins 24V diesel engines
Power Range: 300 to 500 HP performance capability
