Used 2010 Northern Lights M673L3G-5KW Marine Generator Set. Well-functioning generator, including load tests. Runs smoothly and quietly at only 1500 RPM!

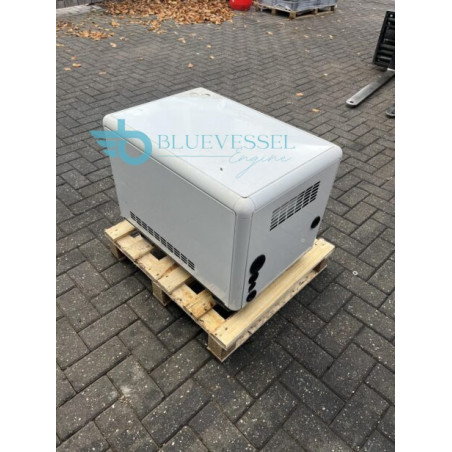

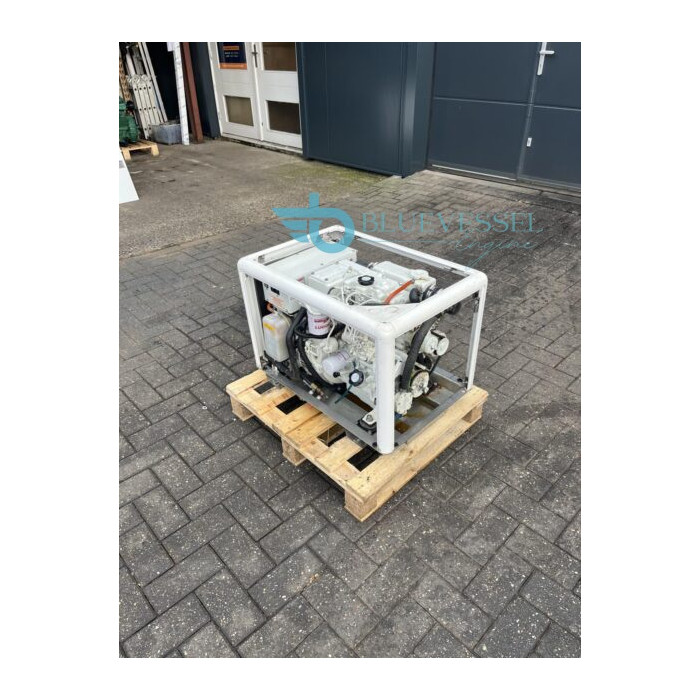

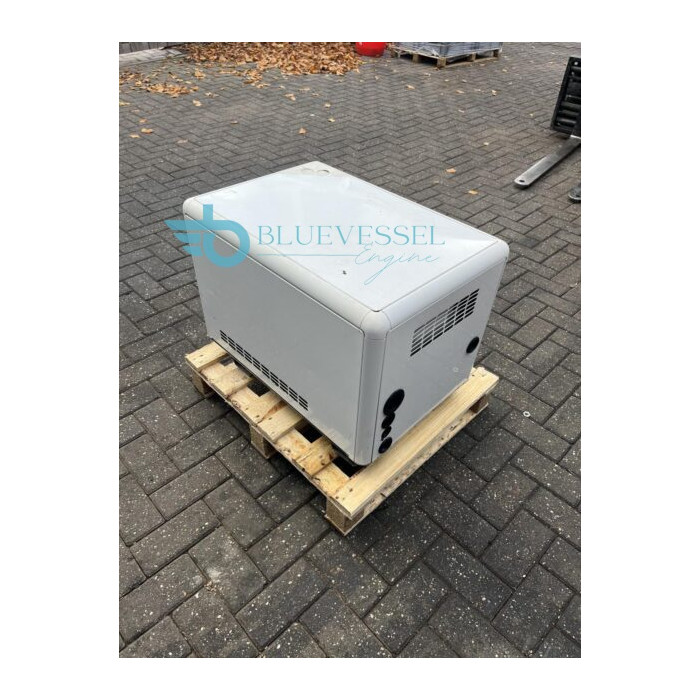

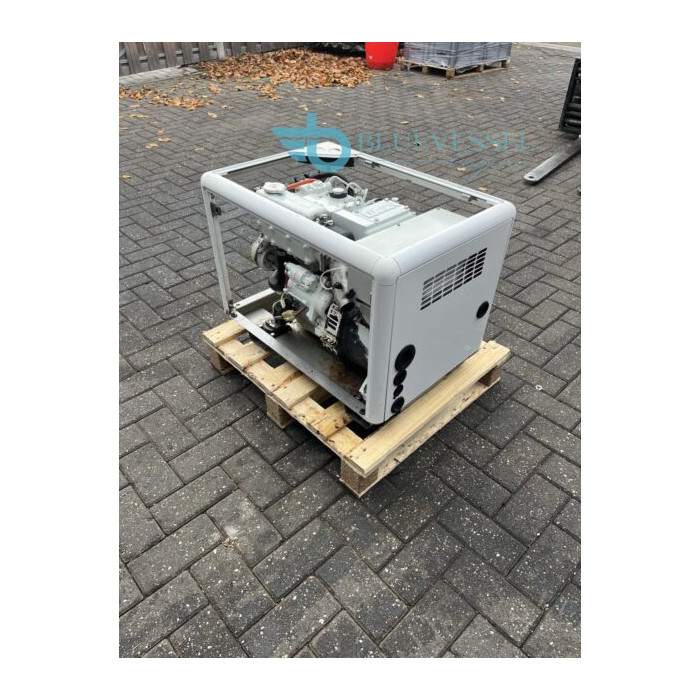

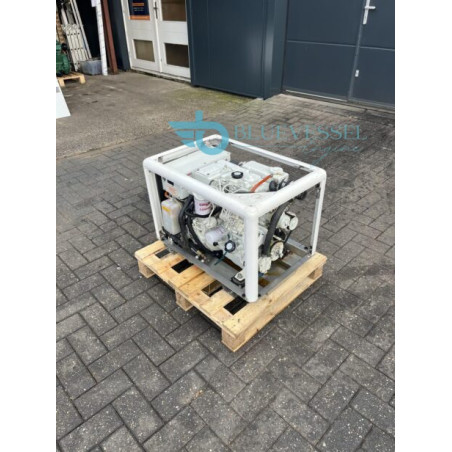

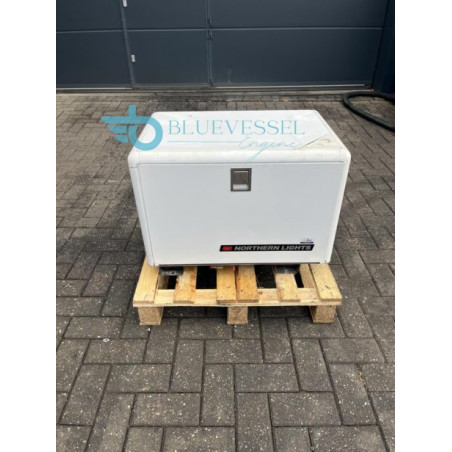

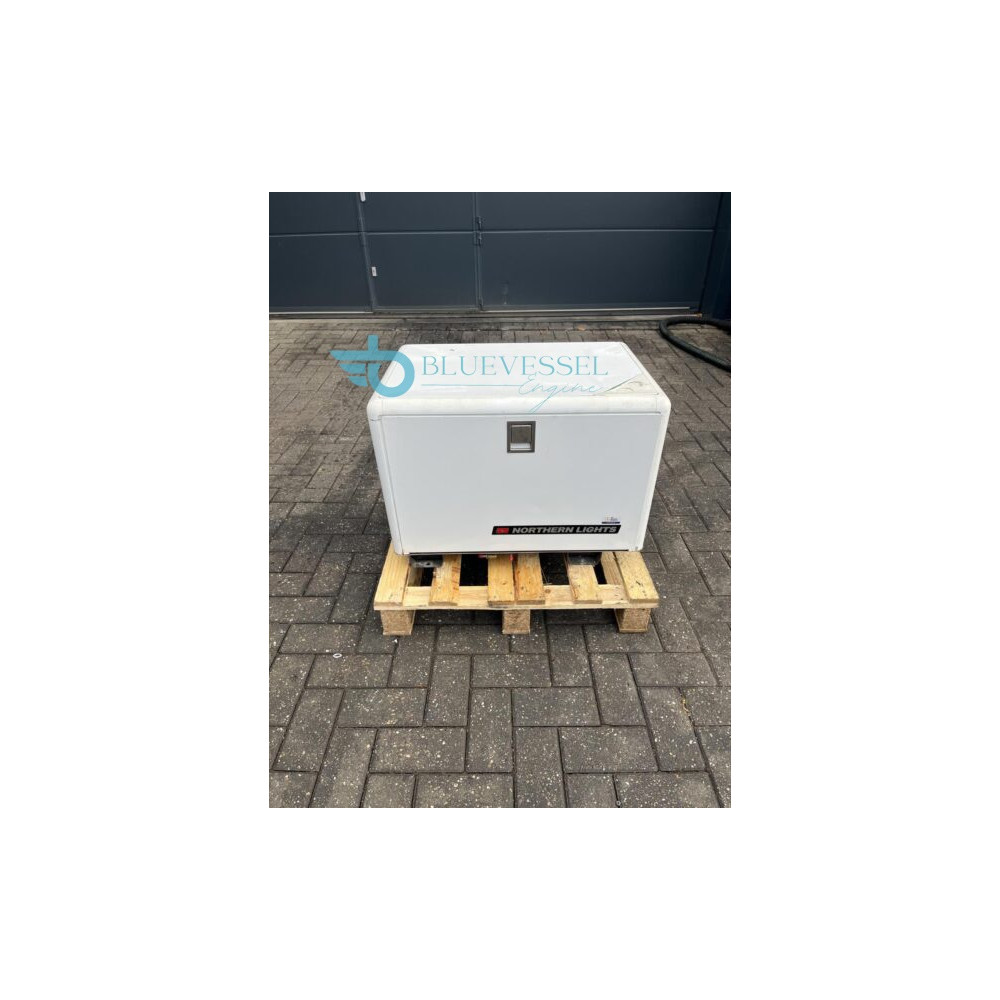

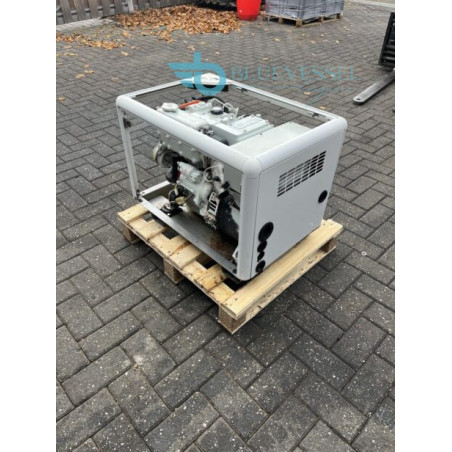

2010 Northern Lights M673L3G-5KW Marine Generator Set
$2,100.00
Used 2010 Northern Lights M673L3G-5KW Marine Generator Set. Well-functioning generator, including load tests. Runs smoothly and quietly at only 1500 RPM!
Northern Lights M673L3G-5KW Marine Generator Set
The Northern Lights M673LD3G is a 3-cylinder, liquid-cooled marine diesel generator engineered on a GEM base frame. It delivers 5 kW at 60 Hz (1800 RPM) or 4.5 kW at 50 Hz (1500 RPM) and complies with US EPA Tier III emission standards.
SPECIFICATION
Design: 4-cycle, 3-cylinder, naturally aspirated, overhead valve diesel
Aspiration & Cooling: Liquid-cooled with a copper-nickel tube heat exchanger
Displacement / Bore: 67 mm bore, long-stroke configuration
Lubrication: 3.1 qt (3 liter) oil capacity with 200-hour service intervals
Output: 5 kW (60 Hz / 1800 RPM)
Type: Direct-coupled, 4-pole, revolving field, 4-lead reconnectable
Insulation: Class “H” insulation with a pre-lubricated bearing
Voltage Regulation: External automatic voltage regulator (AVR) providing ±5% regulation
DC System: 12-volt starter motor and battery charging alternator
Fuel: Diesel
Cooling system type: Heat exchanger
Dimensions: 720 x 500 x 530 mm
FEATURES & SAFETY
Emissions: US EPA Tier III compliant (60 Hz).
Standard Safety Shutdowns: Automatic protection for low oil pressure, high coolant temperature, and high exhaust temperature.
Control Panel: Remote-mount S-3B control panel with an hour meter and start-stop switch included with a 20-foot harness.
