Fully Refurbished Twin Disc MG-5114A 1.92:1 Ratio Reverse and Reduction Marine Transmission. Nice and Clean Condition, Ready to Install !

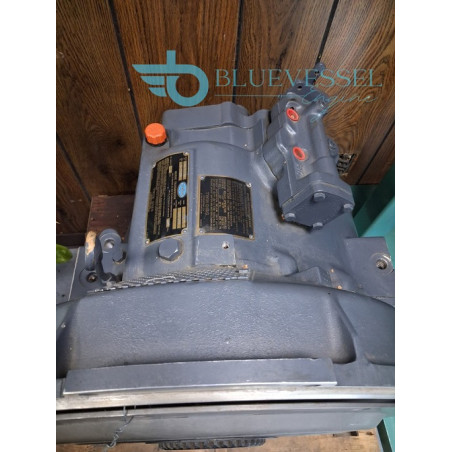

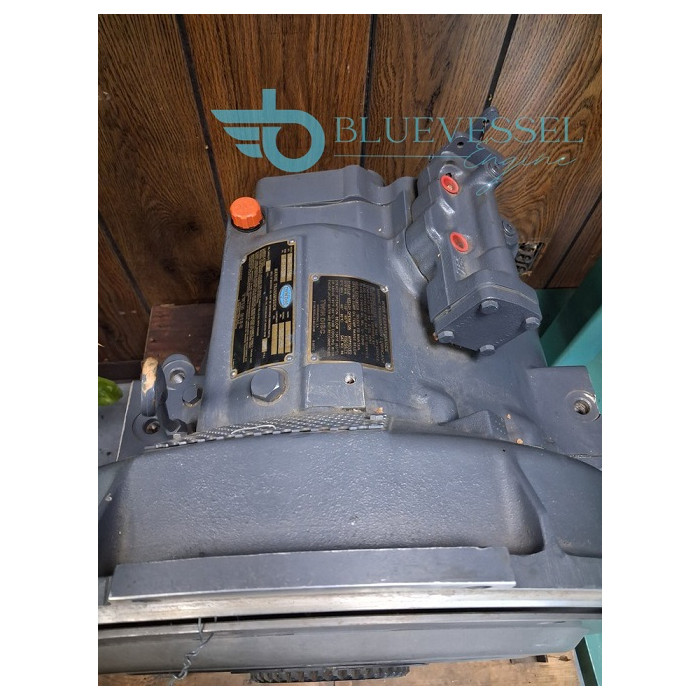

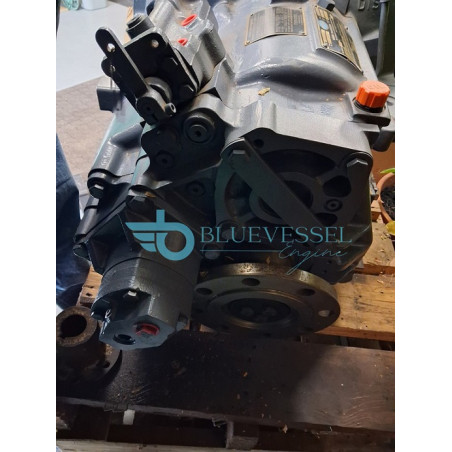

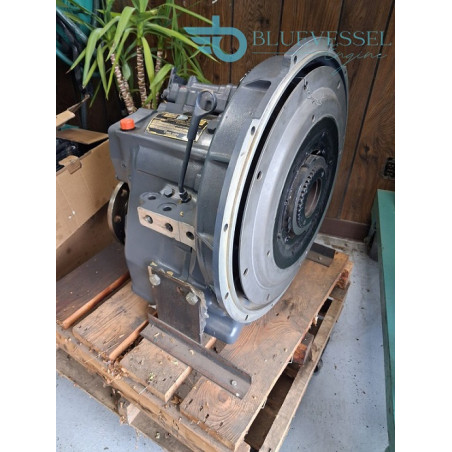

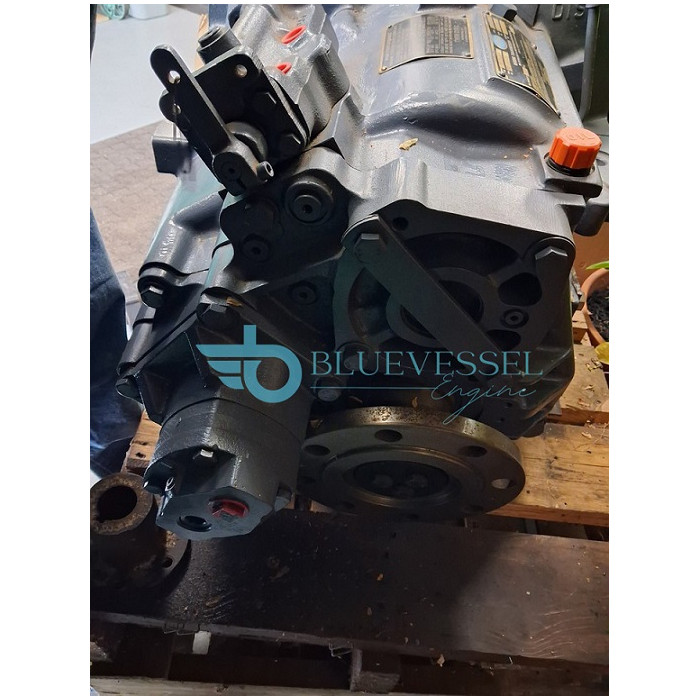

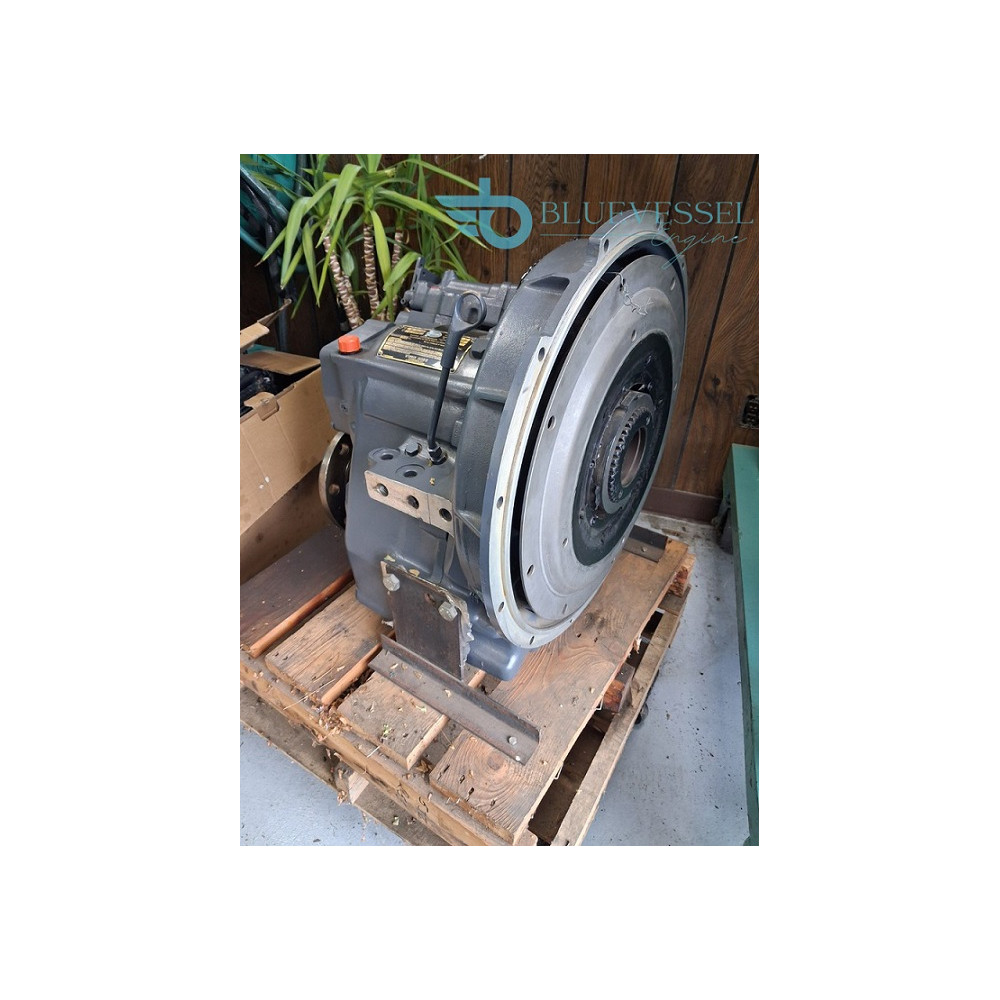

Twin Disc MG-5114A Marine Transmission 1.92:1 Ratio
$3,100.00
Fully Refurbished Twin Disc MG-5114A 1.92:1 Ratio Reverse and Reduction Marine Transmission. Nice and Clean Condition, Ready to Install !
Refurbished Twin Disc MG-5114A 1.92:1 Ratio Marine Transmission
Twin Disc MG-5114A 1.92:1 Ratio is a reverse and reduction Marine Transmission, having a 7° down angle for near level engine installation. The MG-5114A offers conical-helical gearing for quieter operation.
This transmission is controlled completely by hydraulics. Bot he forward and the reverse clutches are operated by main pressure oil suplly. The bearing, clutches, and gears are lubricated and cooled with low pressure oil.
SPECIFICATION
Type: Marine Transmission with hydraulic multi-disc clutch
Angle: 7° down-angle
Max Input Speed: 3000 RPM
Ratios: 1.92:1
Housing: SAE No. 1
Flywheel: 14" or 11.5"
Weight (Dry): 550–650 lbs (206 kg)
Oil Capacity: 2 Gal
Operating Pressure (Neutral): 205 PSI
Cooling: Standard oil-to-water heat exchanger
KEY FEATURES
Conical-Helical Gears: Designed for quieter operation.
Bi-directional Input: Suitable for both left-hand and right-hand engine rotation.
Applications: Commonly used in fishing boats, workboats, and pleasure craft.
Components: Includes hydraulic oil pump, internal oil-cooled clutches, and oil-to-water cool
