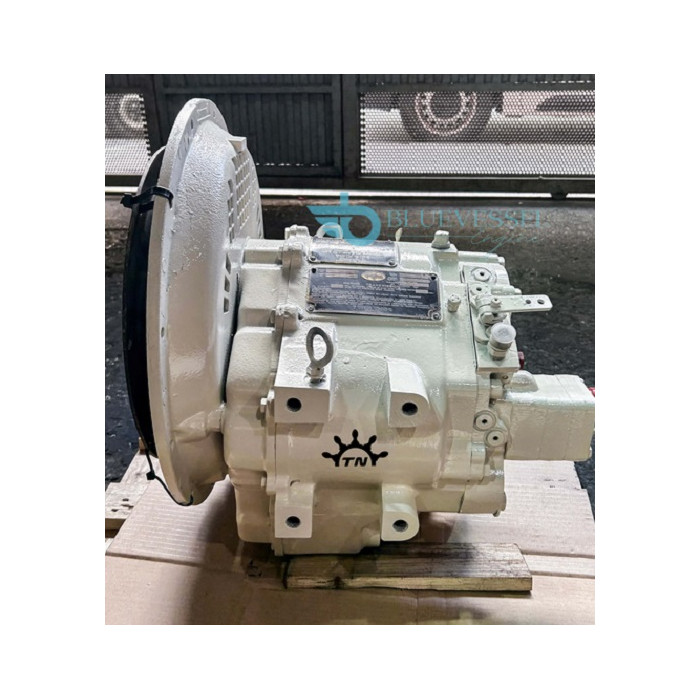

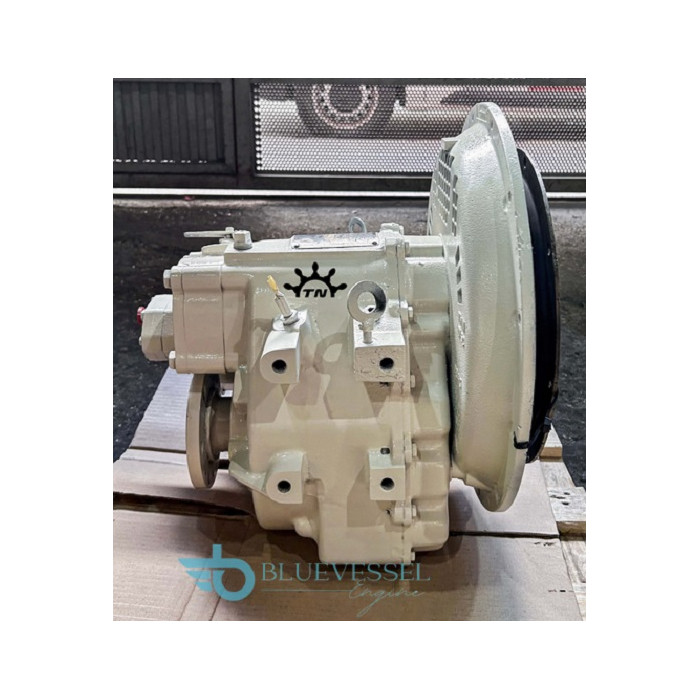

Used Twin Disc MG-5061SC 2.43:1 Ratio Marine Transmission. Perfect Condition and Ready to Install !!

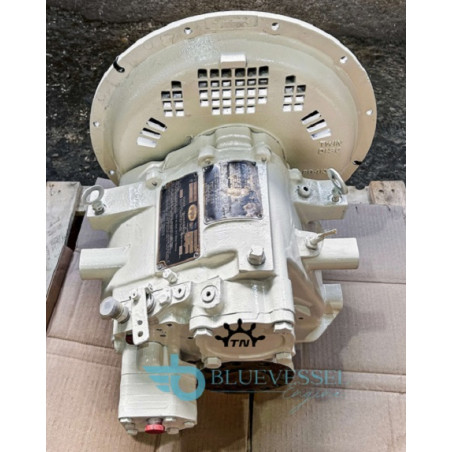

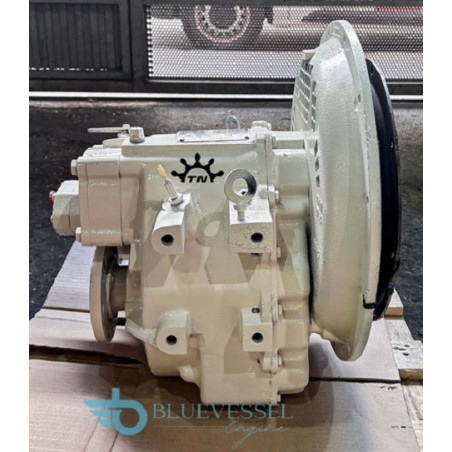

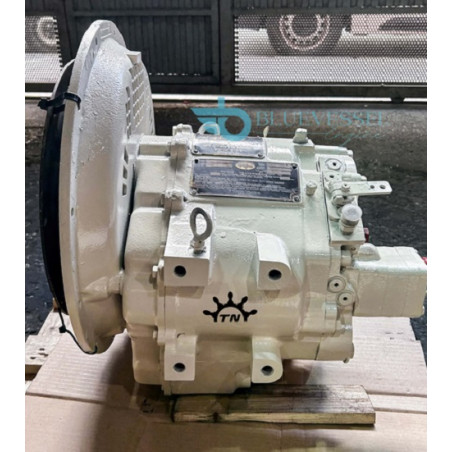

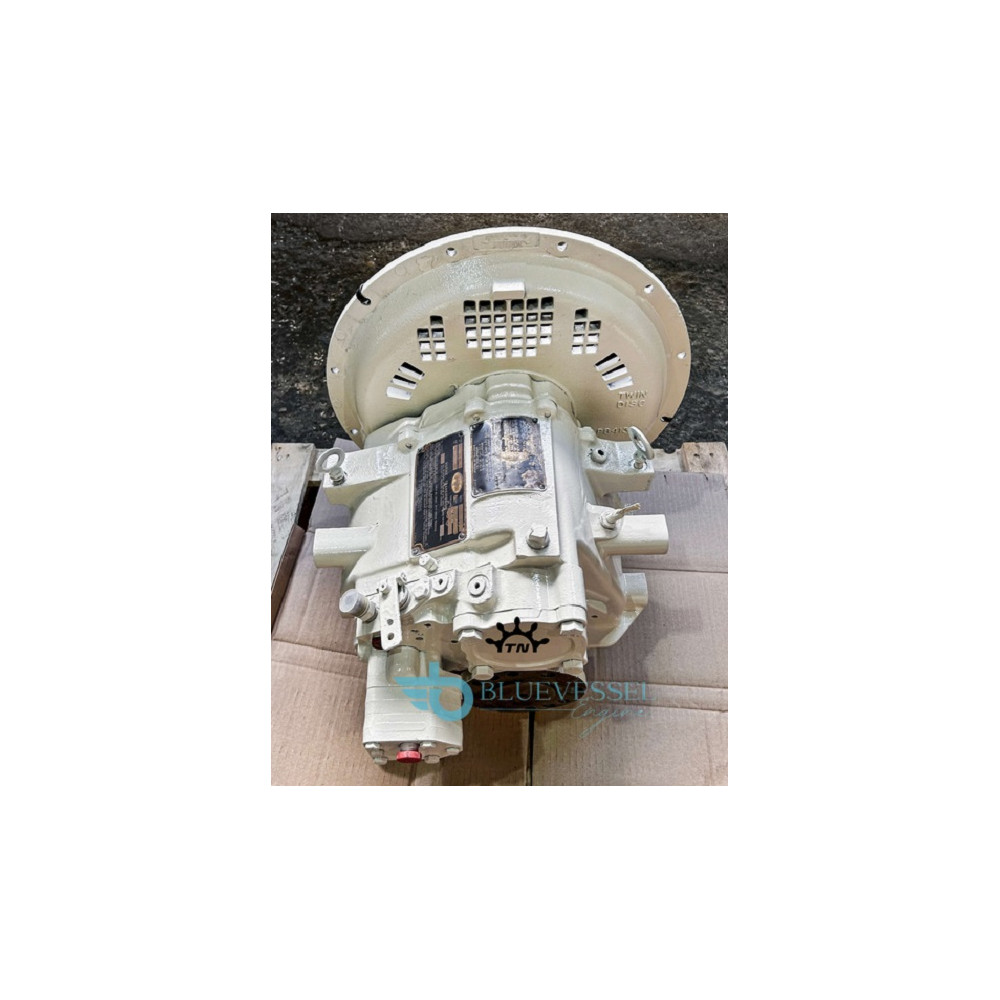

Twin Disc MG-5061SC Marine Gearbox 2.43:1 Ratio
$2,380.00
Used Twin Disc MG-5061SC 2.43:1 Ratio Marine Transmission. Perfect Condition and Ready to Install !!
Twin Disc MG-5061SC 2.43:1 Ratio Marine Gearbox
The MG-5061SC is part of the Twin Disc "MG" series of heavy-duty marine gears. It is designed for use in commercial workboats, fishing vessels, and pleasure craft. The "SC" designation typically refers to a specific housing configuration (Offset Vertical), and this model features a hydraulic multiple-disc clutch.
SPECIFICATION
Model: MG-5061SC
Ratio: 2.43:1
Input Rotation: Counter-Clockwise (Standard)
Output Rotation: Clockwise (Standard)
Transmission Type: Angle Drive (Vertical Offset)
Maximum Input Power (Continuous): Approximately 205 kW (275 HP) at rated RPM
Maximum Input Power (Intermittent): Approximately 260 kW (350 HP) at rated RPM
Maximum Input Speed: 2500 RPM
Rating Factor: Designed for high-torque diesel engines
Dry Weight: Approximately 170 kg (375 lbs)
Oil Capacity: Approximately 14 Liters (3.7 US Gallons)
Center Distance (Input to Output): 139.7 mm (5.5 inches)
Clutch Type: Hydraulic, multiple-disc
Engagement: Hydraulic pressure applied via a solenoid valve or mechanical control valve
Control Options: Compatible with Twin Disc electric or air shift controls
Shaft Coupling: Designed for SAE "A" or "B" type flange adapters
Oil Type: ATF (Automatic Transmission Fluid) is standard (Dexron III/Mercon)
Alternative: SAE 30 Engine Oil (consult manual for viscosity requirements based on ambient temperature)
Cooling: Equipped with an integral oil cooler (water-cooled) to maintain operating temperatures during extended operation
