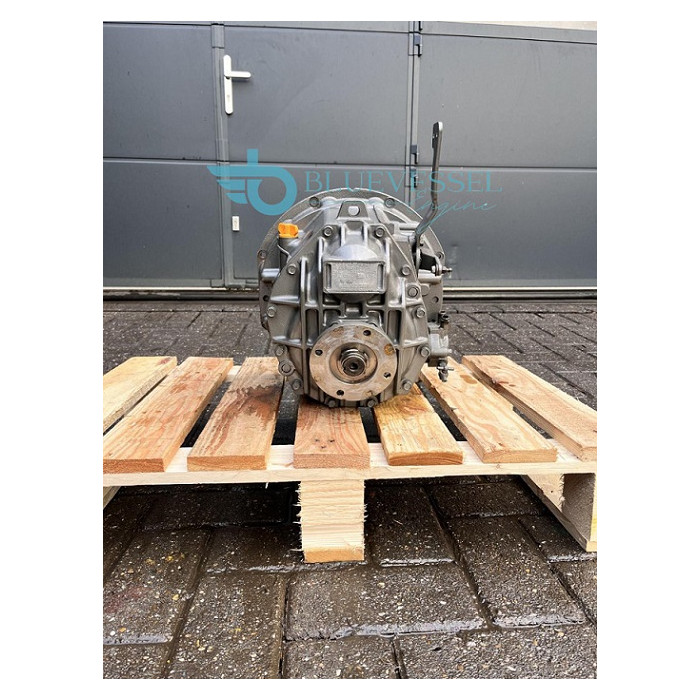

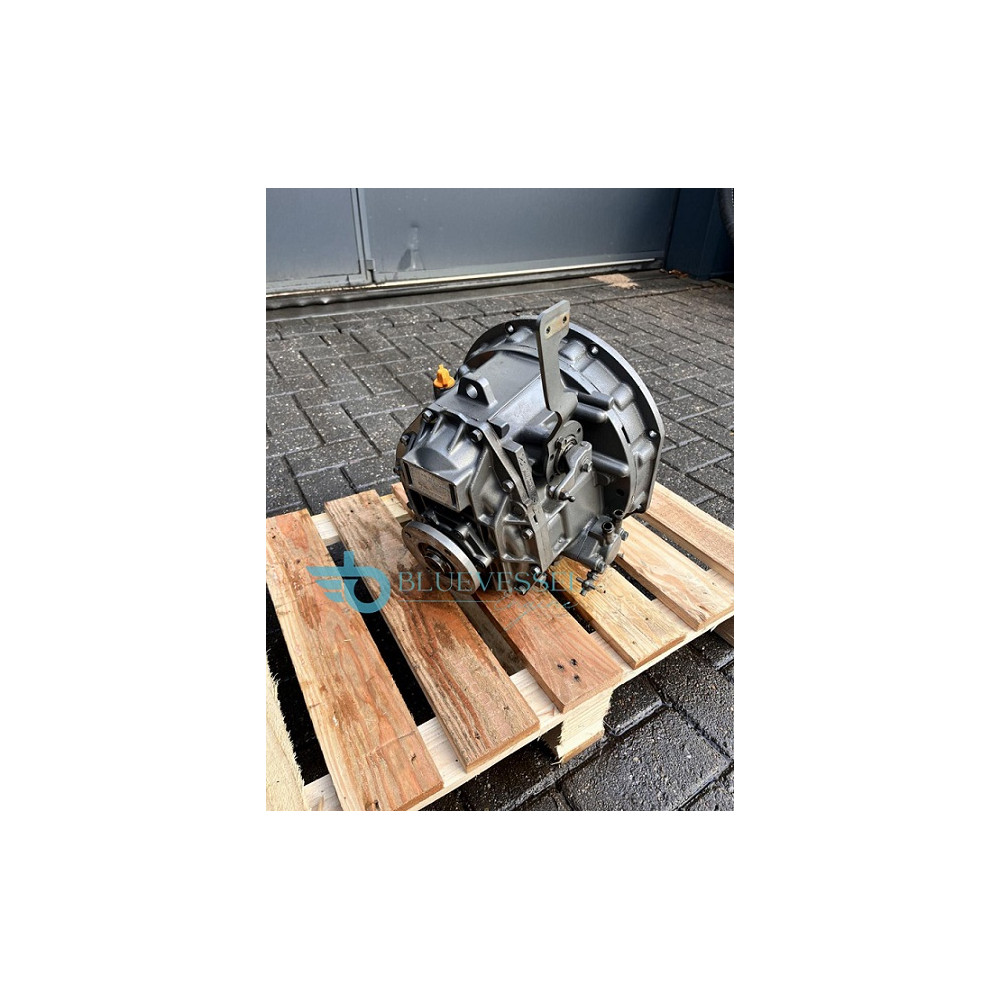

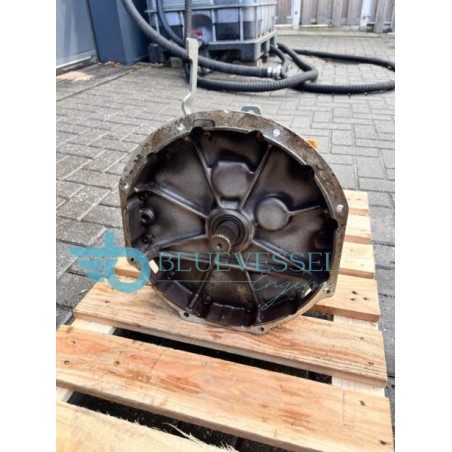

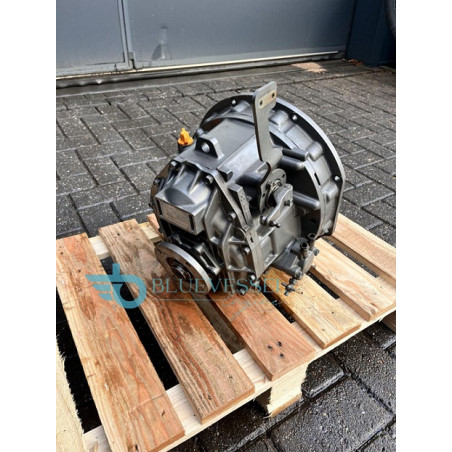

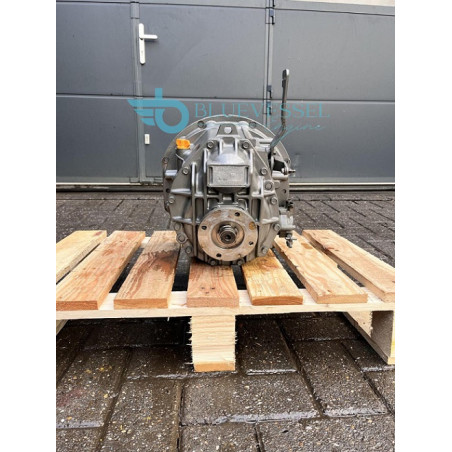

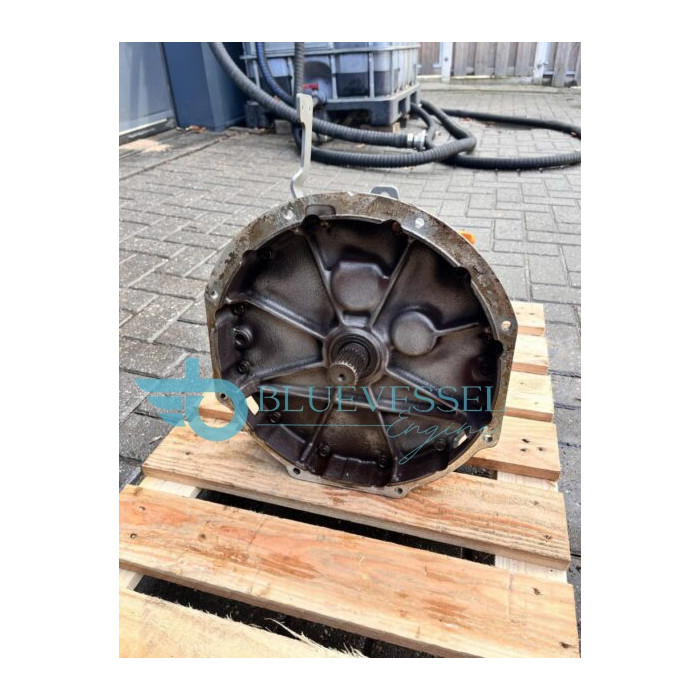

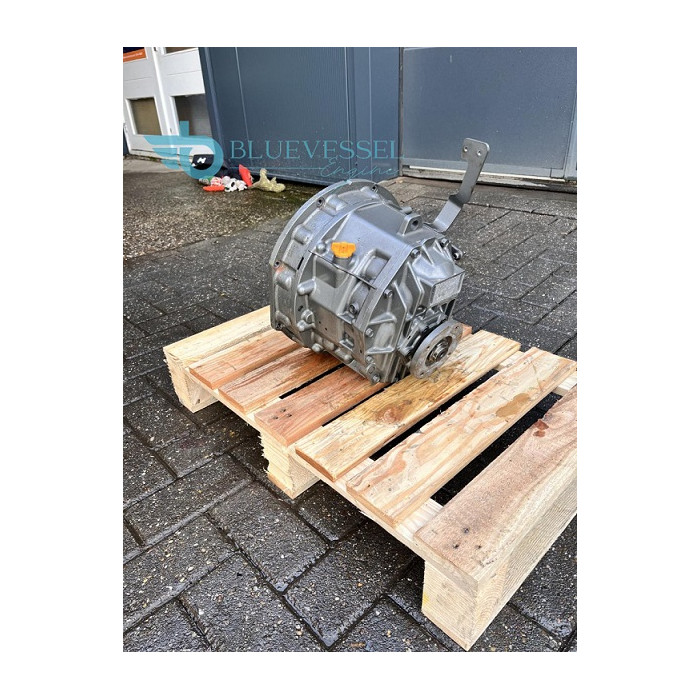

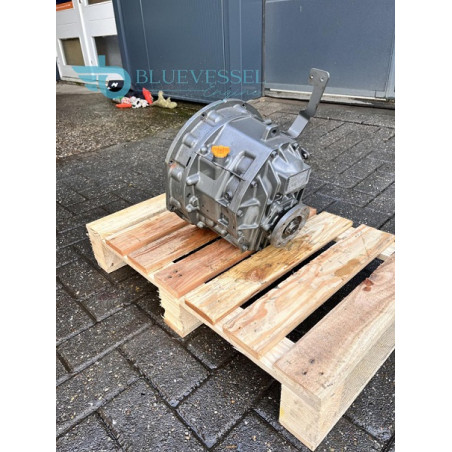

Used Yanmar Kanzaki KM4A 2.14:1 Ratio Marine Gearbox. Good Condition and Ready to Install !!
Yanmar Kanzaki KM4A Marine Gearbox 2.14:1 Ratio
$1,100.00
Used Yanmar Kanzaki KM4A 2.14:1 Ratio Marine Gearbox. Good Condition and Ready to Install !!
Yanmar Kanzaki KM4A 2.14:1 Ratio Marine Transmission
Yanmar Kanzaki KM4A removed from a Yanmar 4JH40 due to conversion.
The Kanzaki KM4A (often KM4A-2 or KM4A1) is a marine transmission commonly paired with Yanmar engines (such as the 4JH series), featuring a 7-degree down-angle output shaft. The 2.14:1 ratio refers to the reduction in speed from the engine to the propeller shaft for both forward and reverse, designed for high-torque applications.
SPECIFICATION
Type: Mechanical servo cone clutch with angle drive (7-degree down angle)
Reduction Ratio (Forward): 2.14:1
Reduction Ratio (Reverse): 2.14:1
Input Torque: 241 Nm at 3,200 rpm
Dry Weight: 28.5 kg (approx. 63 lbs)
Standard Flange: SAE #4
Oil Type: SAE #20 or #30 single-grade engine oil
Oil Capacity: 3.0 liters
Input Shaft Rotation: Counterclockwise (viewed from flywheel side)
Output Shaft Rotation (Forward, viewed from stern): Counterclockwise
