Used Reintjes WAF 360 4.481:1 Ratio Marine Gearbox. Good Working Condition and Ready to Install !!

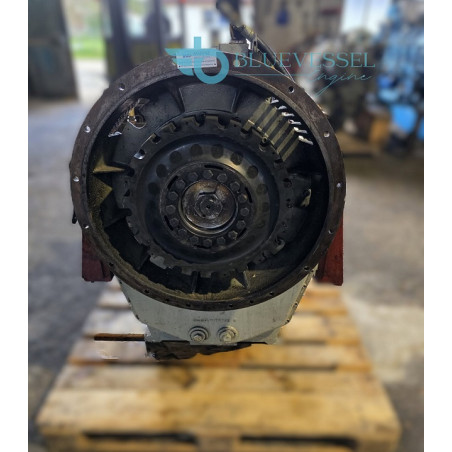

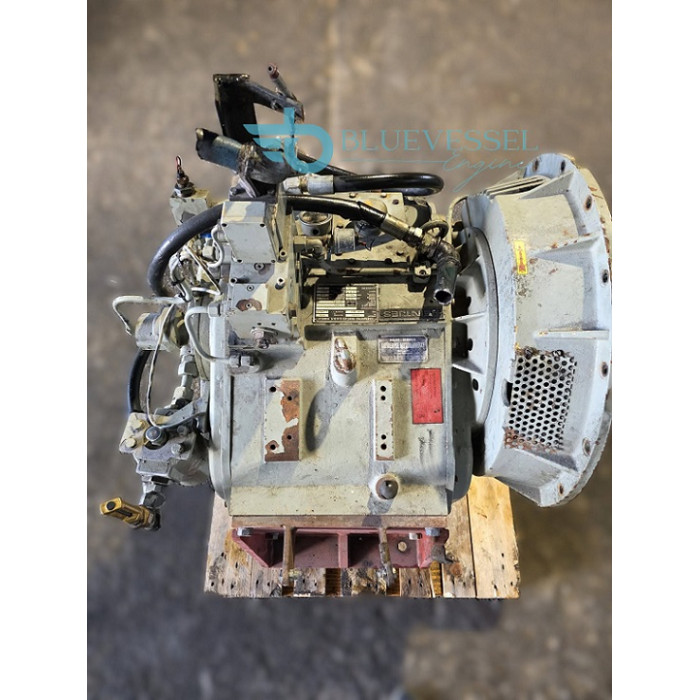

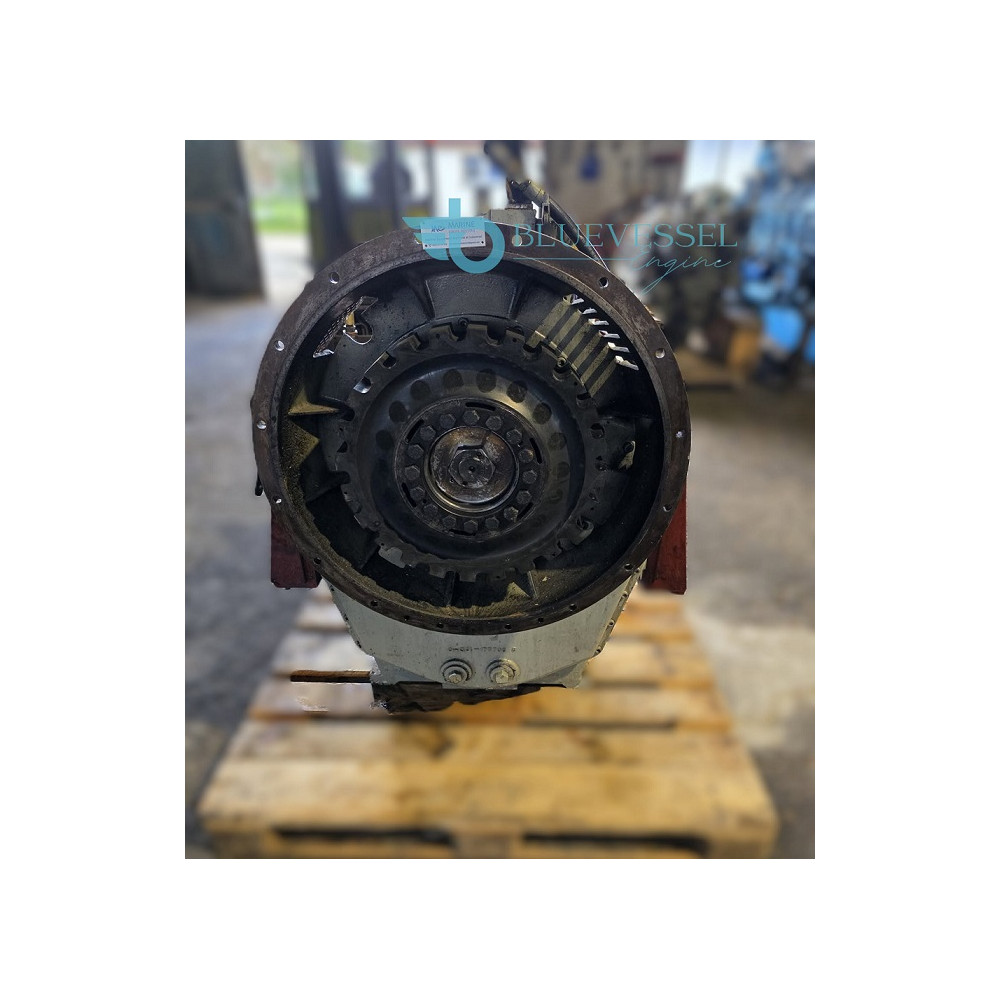

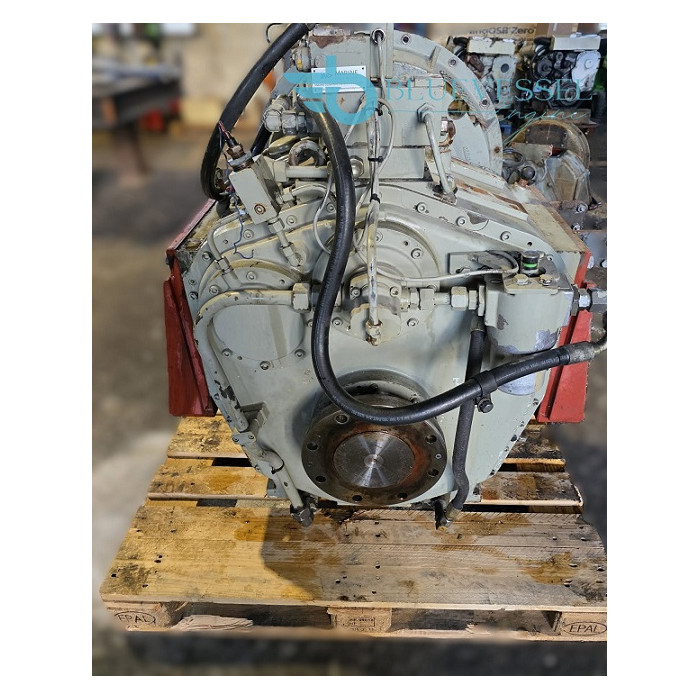

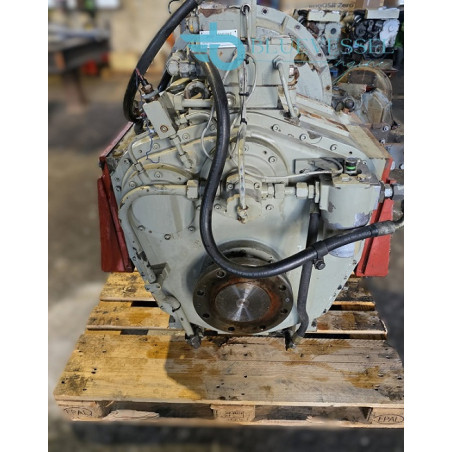

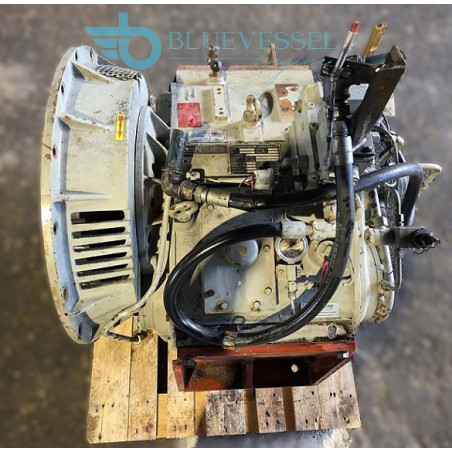

Reintjes WAF 360 4.481:1 Ratio Marine Gearbox
$4,940.00
Used Reintjes WAF 360 4.481:1 Ratio Marine Gearbox. Good Working Condition and Ready to Install !!
Reintjes WAF 360 4.481:1 Ratio Marine Transmission
The Reintjes WAF 360 marine reverse-reduction gearbox with a 4.481:1 reduction ratio is a heavy-duty propulsion unit built for workboats, tugs, and commercial fishing vessels.
SPECIFICATION
Brand/Model: Reintjes WAF 360
Gear Ratio: 4.481:1
Input Power: 504 kW (675 hp)
Rated Speed: 1800 RPM
Dry Weight: Approximately 860 kg
Dimensions (L x W x H): 100 x 90 x 120 cm
Housing/Coupling: SAE housing with coupling and aluminum ring
Oil/Lubrication Grade: SAE 30
KEY FEATURES
Reverse-Reduction Operation: Integrates built-in, hydraulically actuated multi-disc clutches allowing full power ahead, astern, and neutral configurations smoothly under heavy loads.
Robust Bearing Design: Built with high-grade cylindrical roller bearings and parallel shafts to minimize mechanical wear during continuous, multi-day commercial duty.
Flexible Mounting Options: Features heavy-duty structural side brackets allowing for either free-standing or close-coupled rigid installation to diesel marine engines.
Hydraulic and Controls Package: Typically comes equipped with mechanical or electro-hydraulic shift controls, specialized internal pressure-limiting valves, and an integrated heat-exchanger oil cooler loop.
