Refurbished Twin Disc MGX-5136A QuickShift Series Gearbox Marine. Perfectly Good Running Condition

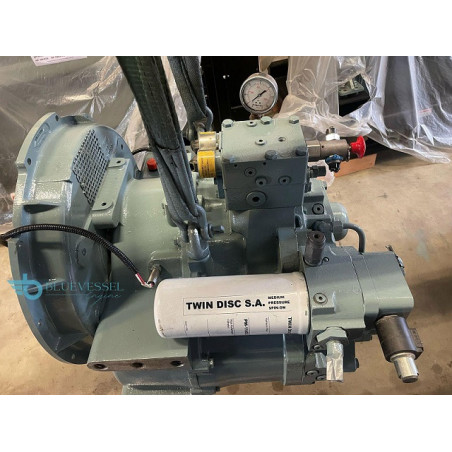

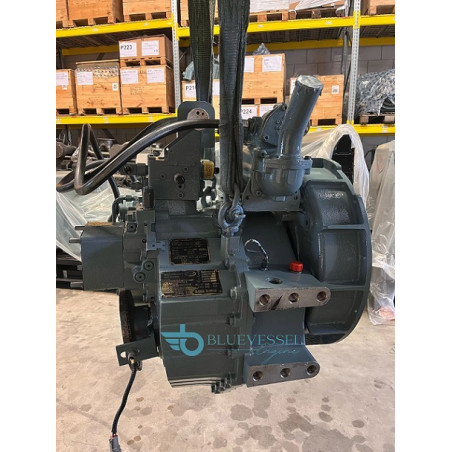

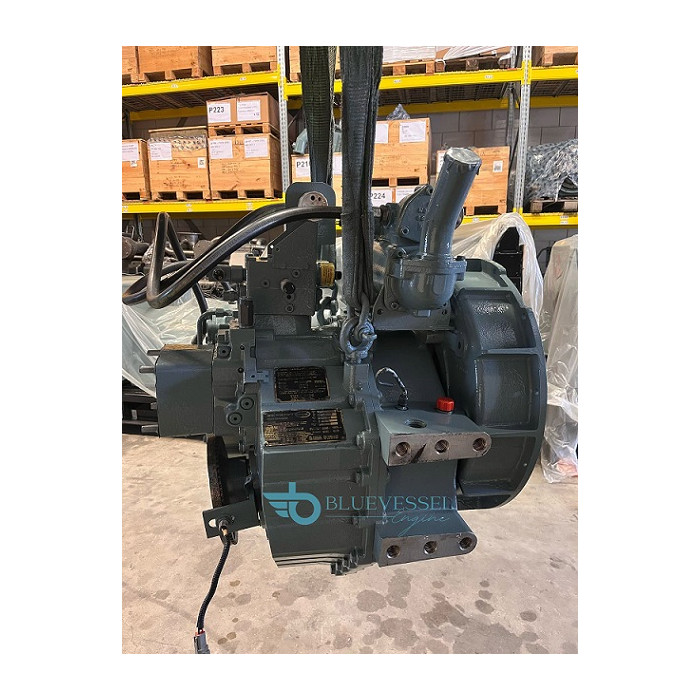

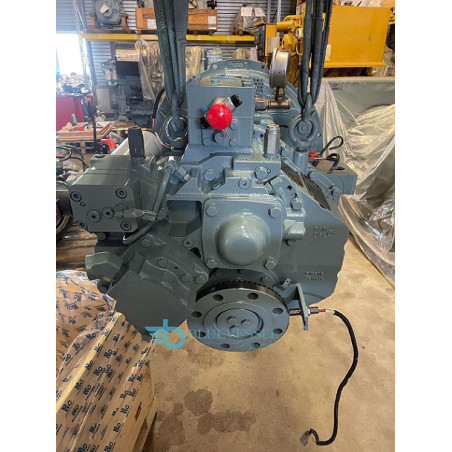

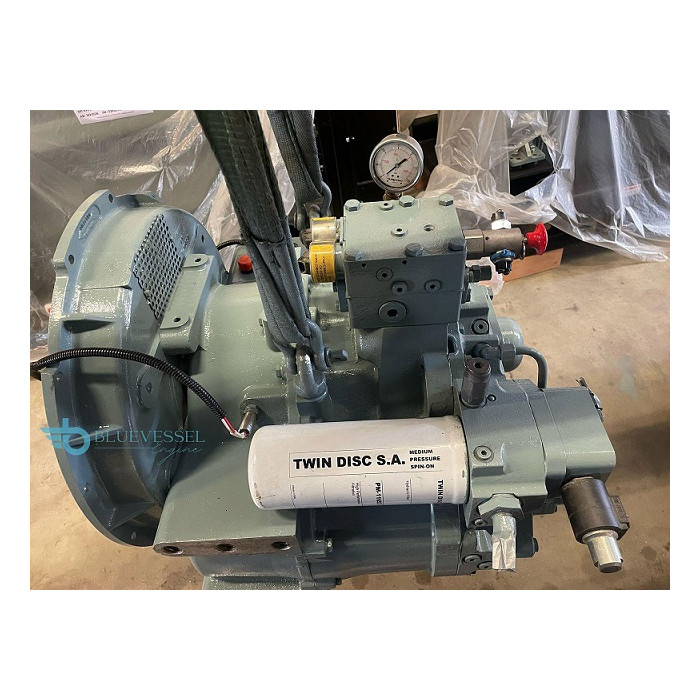

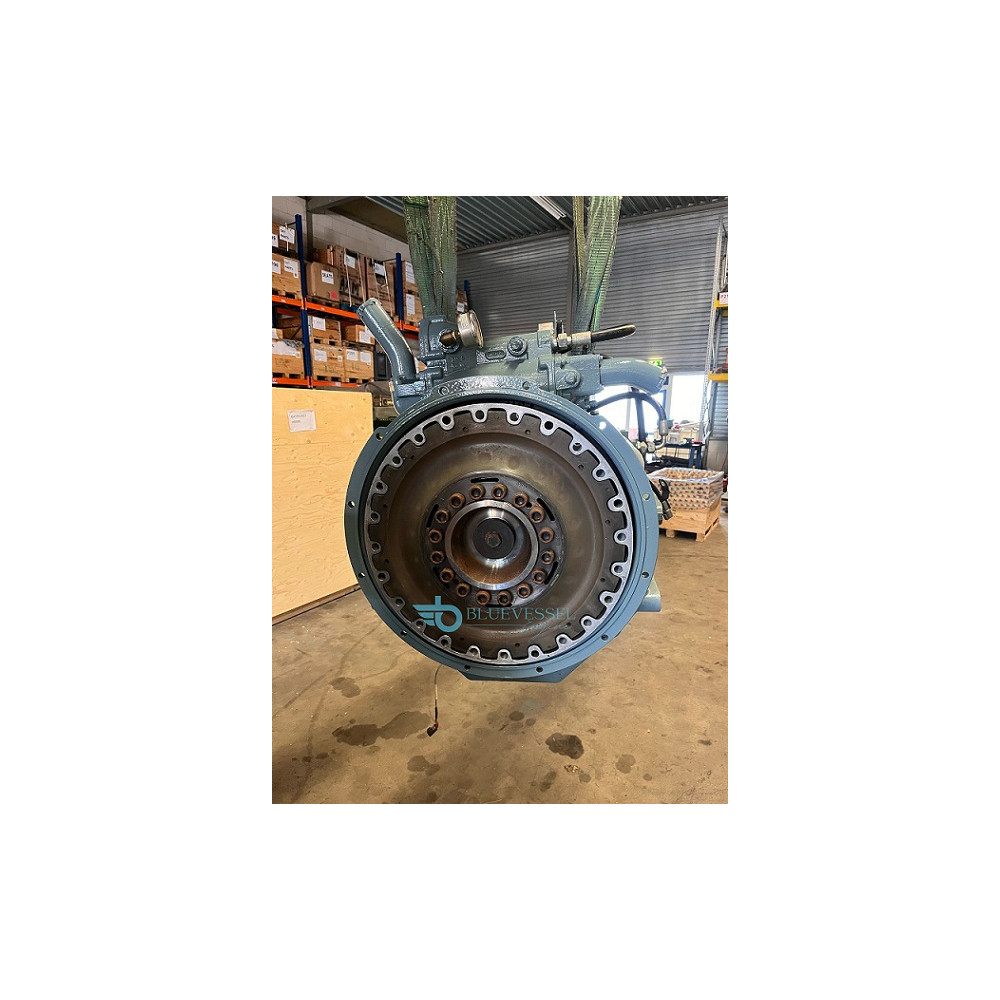

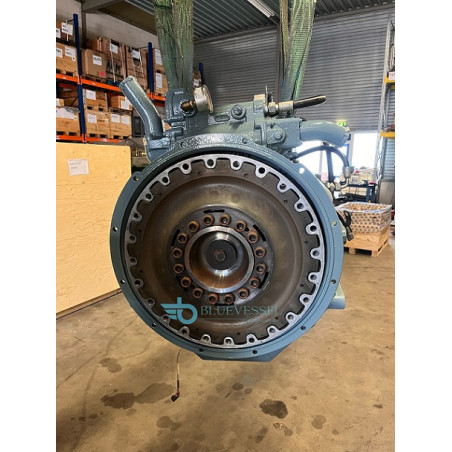

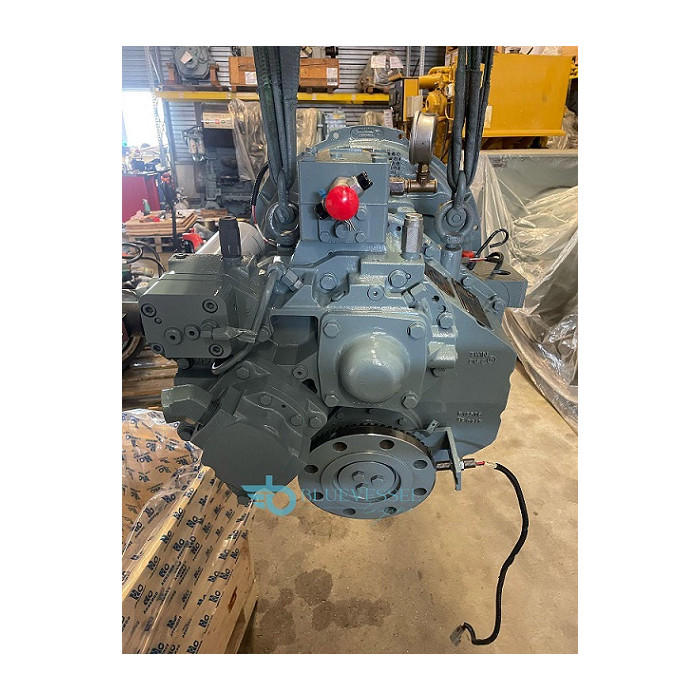

Twin Disc MGX-5136A QuickShift Series Gearbox Marine
$14,300.00
Refurbished Twin Disc MGX-5136A QuickShift Series Gearbox Marine. Perfectly Good Running Condition
Twin Disc MGX-5136A is a QuickShift marine transmission designed for high-performance vessels, with a 2.00:1 reduction ratio, capable of handling 445 kW (597 HP) in continuous duty at 1800 RPM. It features electronic control (EC600PC) for fast, smooth shifting, a 10 degree down-angle, and is compatible with SAE housing.
SPECIFICATION
Model: MGX-5136A (QuickShift Series)
Reduction Ratios: 2.00:1
Horsepower (Continuous): 445 kW (597 HP) @ 1800 RPM
Horsepower (Pleasure Craft): Up to 895 kW (1200 HP) @ 2300 RPM
Configuration: 10 degree Down Angle
Weight: 294 kg
Gearbox Type: Marine Reduction Gearbox with Electro-hydraulic Clutch
Cooling: Oil cooler with thermostatic bypass valve
Housing: SAE J617 housing No. 1
CORE FEATURES
QuickShift Technology: Provides superior shifting performance, low-speed maneuverability, and smooth engagement, particularly useful for trolling, according to.
Control System: EC600PC e-troll module and propulsion control system included.
PTO: Live PTO (SAE "C", 4-bolt) and hydraulic clutchable PTO available.
Coupling: Flexible coupling for 14" (SAE 355) or 18" (SAE 460) flywheels.
MAINTENANCE & PTO
MOil & Filter Change: Twin Disc recommends replacing both the transmission filter and oil every 1000 operating hours or 6 months, whichever comes first.
PTOs (Power Take-Offs): Flexible for work environments, offering live PTOs (SAE "A", "B", "B-B", "C") and hydraulic clutchable PTOs.
Trolling/Monitoring: Mechanical control valve, EC050/EC600 E-Troll module, and custom monitoring devices available as add-ons.
