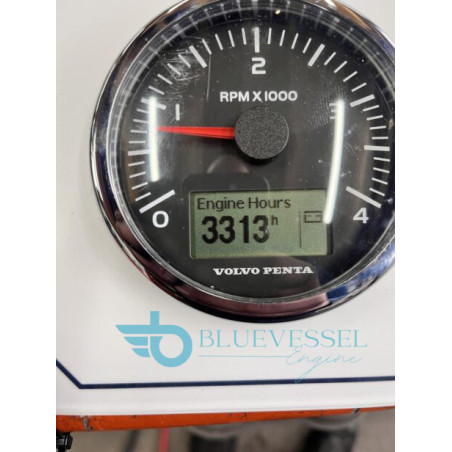

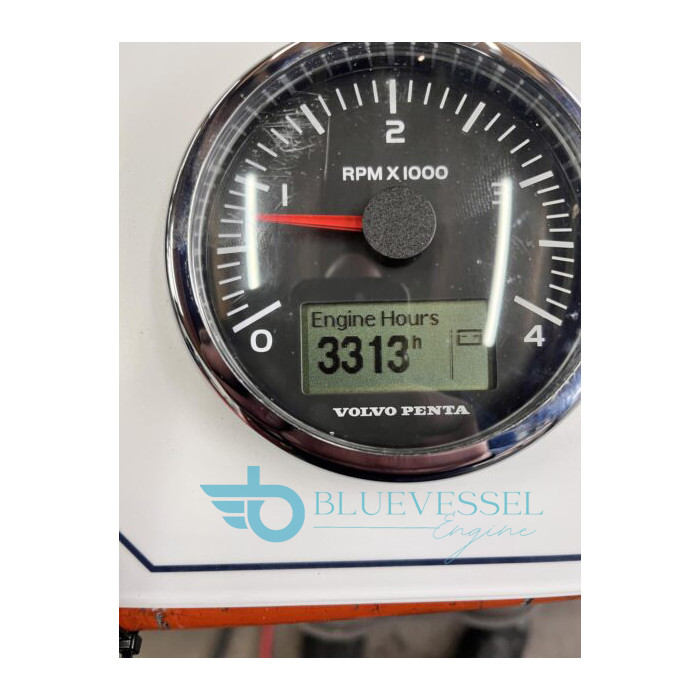

Used Volvo Penta D4-180 marine engine with reverse gear quantity (HS45AE-B). Operating time of only 3313 hours. This used Volvo Penta D4-180I-C is in very neat condition and is a powerful, modern marine diesel known for its reliability, efficiency, and smooth running. Ready to Install !

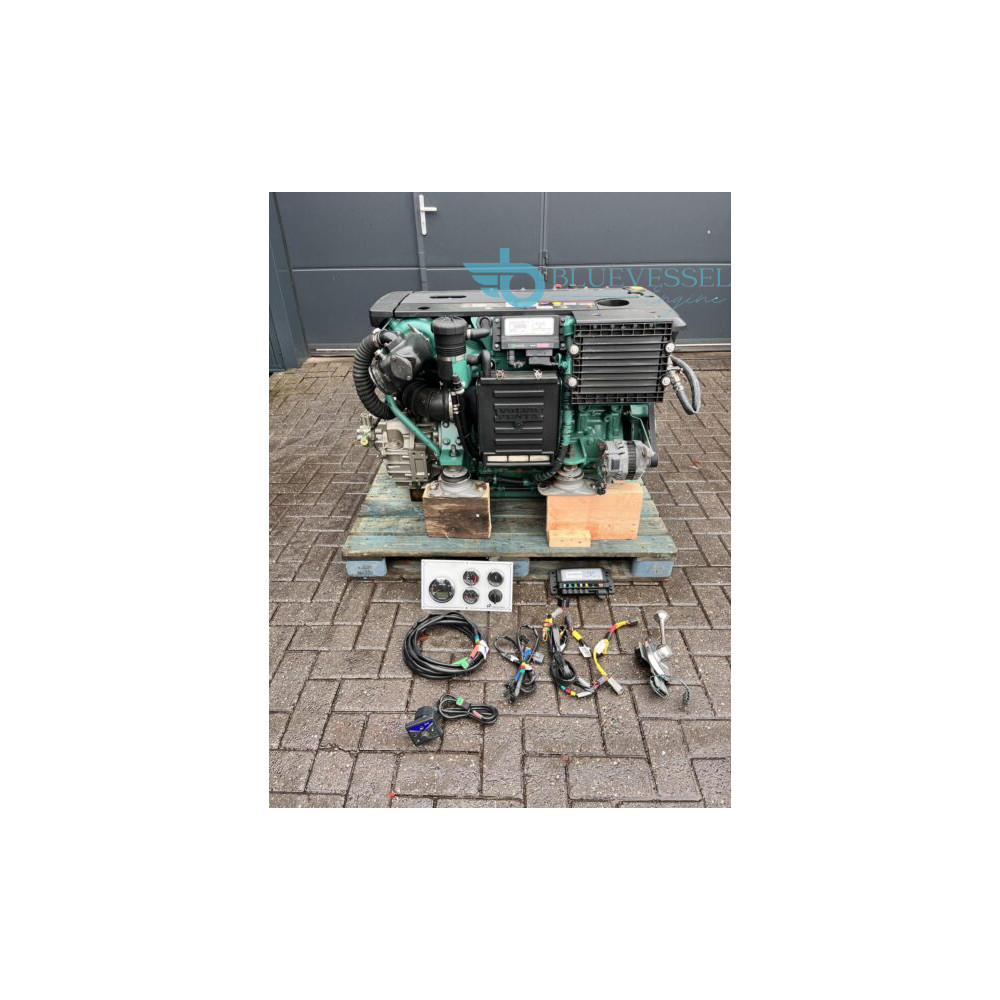

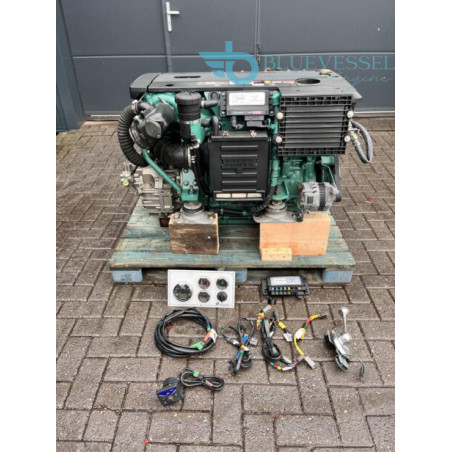

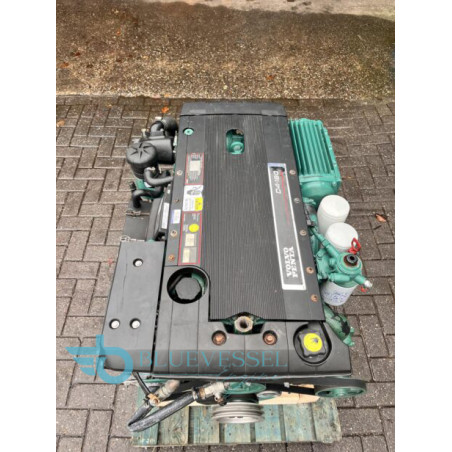

Volvo Penta D4-180I-C Inboard Diesel Engine 180-HP
$6,400.00
Used Volvo Penta D4-180 marine engine with reverse gear quantity (HS45AE-B). Operating time of only 3313 hours. This used Volvo Penta D4-180I-C is in very neat condition and is a powerful, modern marine diesel known for its reliability, efficiency, and smooth running. Ready to Install !
Volvo Penta D4-180I-C 3.7L 4-Cylinder 180 HP Inboard Diesel Engine
The Volvo Penta D4-180 marine diesel engine represents the perfect balance of modern performance and proven reliability, delivering 180 horsepower from a sophisticated 4-cylinder common rail platform. At Wave Inboard Motors, our factory-certified technicians have extensive experience with the D4 series, making us your trusted source for professional marine engine installation and maintenance of these advanced powerplants.
SPECIFICATION
Crankshaft Power: 132 kW (180 hp) at 2,800 rpm
Propeller Shaft Power: 128 kW (174 hp) at 2,800 rpm
Displacement: 3.7 liters (224 in³)
Cylinders: 4-cylinder in-line with turbo and charge air cooler
Bore / Stroke: 103 mm / 110 mm (4.05 in. / 4.33 in.)
Compression Ratio: 17.5:1
Dry Weight (with HS45AE): 546 kg (1,204 lb)
Ratings: R4 (light planing craft in commercial operation) and R5 (pleasure craft)
Emission Compliance: IMO NOx, EU RCD Stage II, US EPA Tier 3
HS45AE-B SPECIFICATION
Type: Hydraulic reverse gear with 8° down-angled output shaft (drop center)
Gear Ratio: 2.43:1
DIMENSIONS
Length Overall (A): ~1,200 mm
Width (B): ~720 mm
Height (C): ~780 mm
KEY FEATURES
Engineered Efficiency: Integrated balance shafts and a ladder frame, bolted to the cylinder block for high reliability and low noise.
Easy Maintenance: Clean, compact design with easily accessible service points, including oil-filled service points.
Full Control: EVC (Electronic Vessel Control) provides electronic shifting and throttle as standard.
