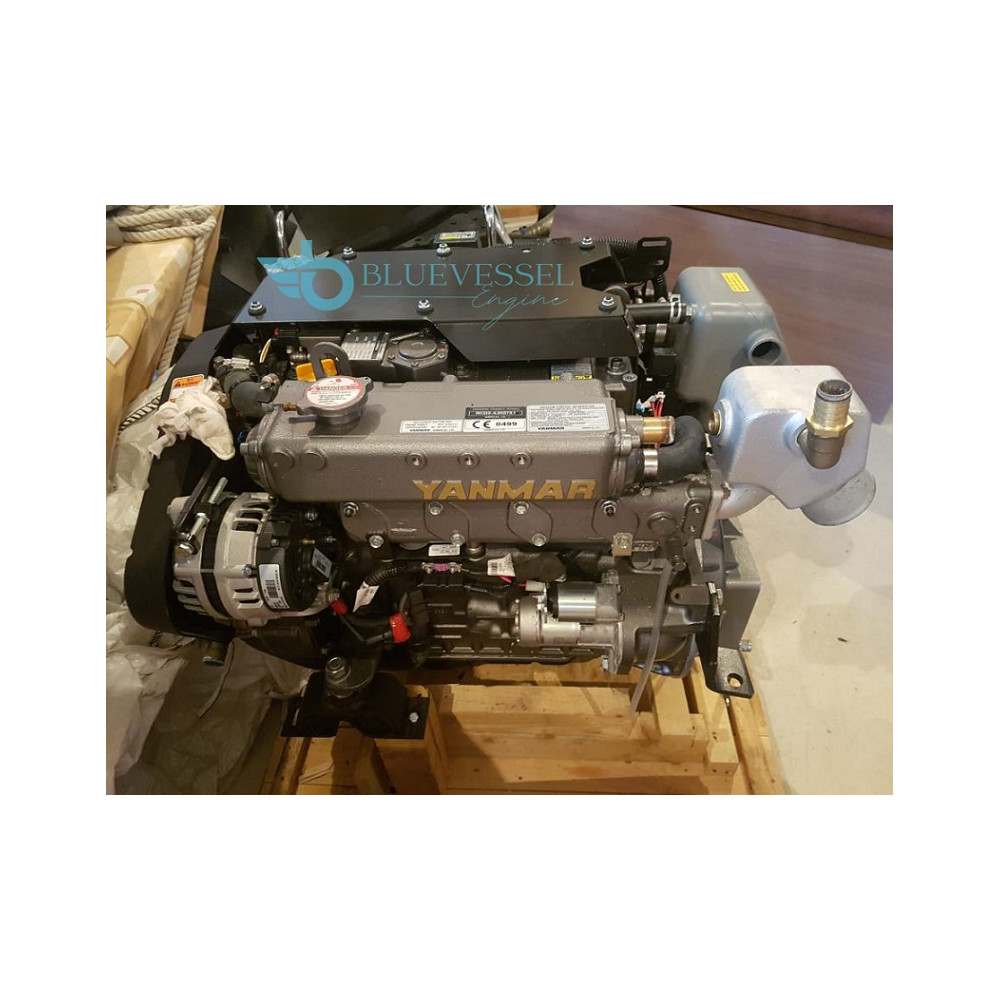

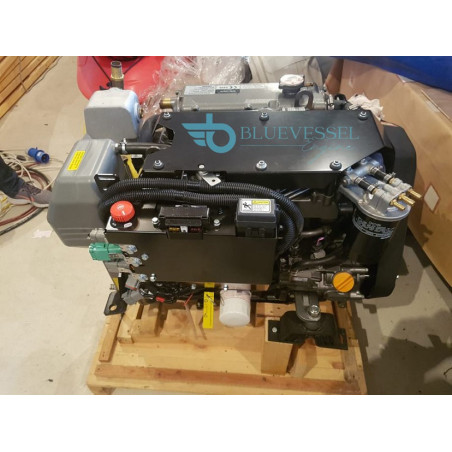

Brand New Yanmar 4JH57 2.2L 57-HP Inboard Diesel Engine. Excellent Condition and Ready to Install !!
Yanmar 4JH57 Inboard Diesel Engine 57-HP
$4,800.00
Brand New Yanmar 4JH57 2.2L 57-HP Inboard Diesel Engine. Excellent Condition and Ready to Install !!
New Yanmar 4JH57 2.2L 4-Cylinder 57-HP Inboard Diesel Engine. Never Installed !!
YANMAR’s new generation JH-Common Rail Series with class leading features out performs its competition. Compact, powerful, smooth, quiet, efficient and interconnective, the JH-CR Series is perfect for any application whether rib, tender, sailboat or catamaran, new or re-power.
Yanmar 4JH57 engine is compatible with several transmission options for marine use. The KM35P and KM4A-2 are robust mechanical marine gearboxes, featuring hydraulic clutch controls and designed for inboard applications.Ideal for installation in boats with limited engine compartment space.
SPECIFICATION
Model: 4JH57
Engine Type: 4 cylinders in-line
Displacement: 2.19 litres (2190 cc)
Bore x Stroke: 84 mm x 90 mm
Power Output: 57hp (41.9 kW) at 3000 rpm
Compression Ratio: 18.9:1
Fuel System: Common rail direct injection (CR)
Alternator Output: 12V – 125A
Lubrication System: Forced lubrication by gear pump
Oil Capacity: 7.4 litres
Starting System : Electric start
Direction of Rotation: Counterclockwise (viewed from flywheel)
Weight: 220 kg (without gearbox)
Gearbox Options: KM35A, KM4A2 (mechanical or hydraulic)
Exhaust System: Water-cooled, with wet exhaust manifold
Fuel Consumption: Approx. 7.5 litres/hour at cruising speed
Application: Sailboat and small craft auxiliary propulsion
KEY TECHNOLOGY & DESIGN
Common Rail System: Electronically controlled high-pressure fuel injection optimizes combustion for high efficiency and low emissions.
Emissions Compliance: Meets EU RCD 2, BSO II, and US EPA Tier 3 standards.
Cooling System: Integrated freshwater cooling system with an expansion tank to prevent internal corrosion.
Electrical System: Standard 12V – 125A alternator
