Nice and clean Volvo Penta D2-75F with a HS25A-C Ratio 2.71:1. Shaft drive with 8 deg down angle. Only done 12.9 hours. Comes with start/stop panel and tacho gauge. Comes with polly flex coupling. Ready to Install !!

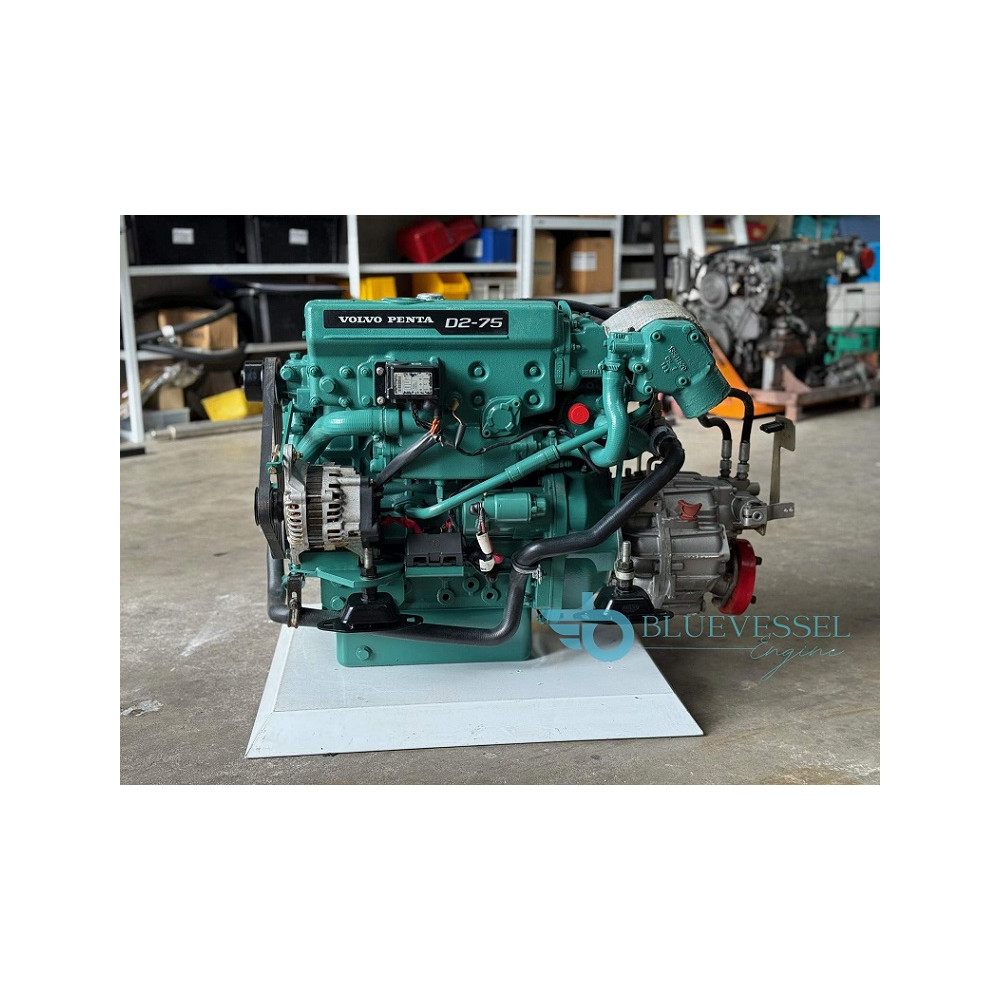

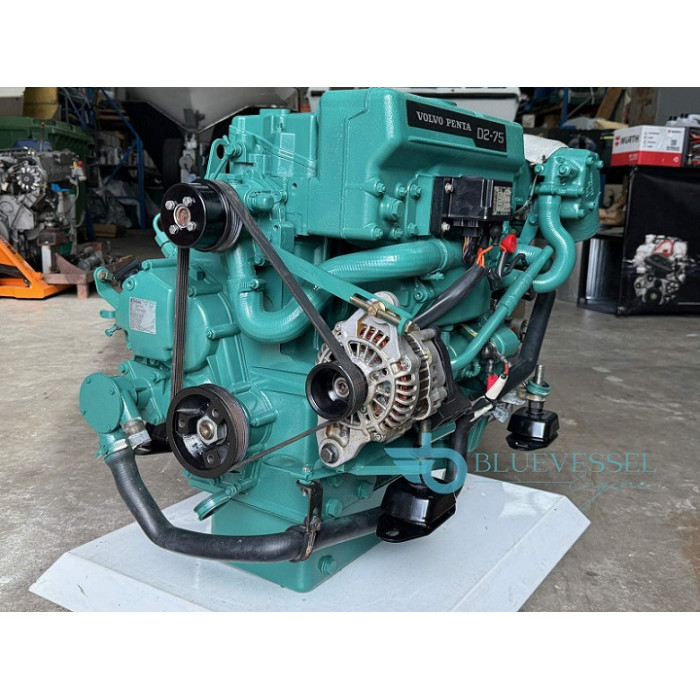

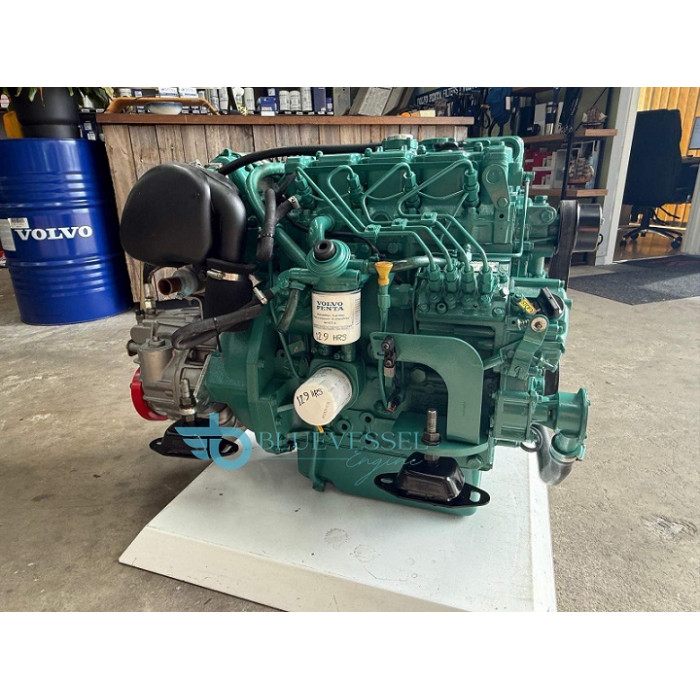

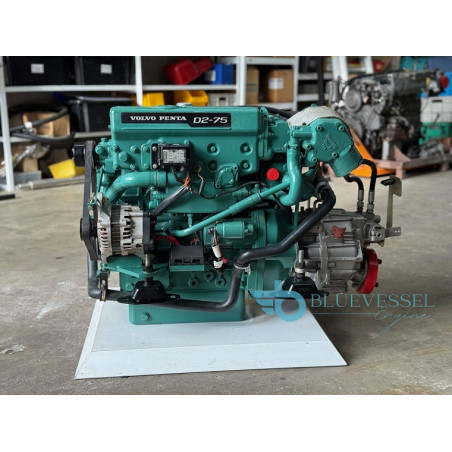

Volvo Penta D2-75F Inboard Diesel Engine 75-HP
$6,000.00
Nice and clean Volvo Penta D2-75F with a HS25A-C Ratio 2.71:1. Shaft drive with 8 deg down angle. Only done 12.9 hours. Comes with start/stop panel and tacho gauge. Comes with polly flex coupling. Ready to Install !!
Volvo Penta D2-75F 2.2L 4-Cylinder 75 HP Inboard Diesel Engine
The Volvo Penta D2-75 is a 4-cylinder, 2.2-liter, turbocharged marine diesel engine delivering 75 hp (55 kW) at 3000 rpm with a dry weight of approximately 260 kg.
SPECIFICATION
Cylinders: 4-cylinder in-line
Displacement: 2.2 liters (134.2 cu. in.)
Bore / Stroke: 84 mm / 100 mm (3.31 in. / 3.94 in.)
Compression Ratio: 23.3:1
Aspiration: Turbocharged
Max Output: 74–75 hp (55 kW) at 3000 rpm
Idle Speed: 850–900 rpm
Emissions: EU RCD Stage II, US EPA Tier 3, and BSO certified
Oil Capacity: ~10.5 liters
Coolant Capacity: ~9.5 liters
Dry Weight with Gear: ~260 kg
Rating: R5
KEY FEATURES & SYSTEM
Cooling: Freshwater cooling system (standard)
Electrical: 12V / 115A marine alternator with charging sensor
Transmission Options: HS25A Hydraulic
Engine Design: Inline 4-cylinder with cam-driven in-line injection pump, featuring low cruising rpm for reduced vibration and noise.
