Used Yanmar 2GM20F 18-HP Inboard Diesel Engine with Low Hours Engine. Nice and Clean Condition, Engine Fully Serviced. Running Good and Ready to Install !!

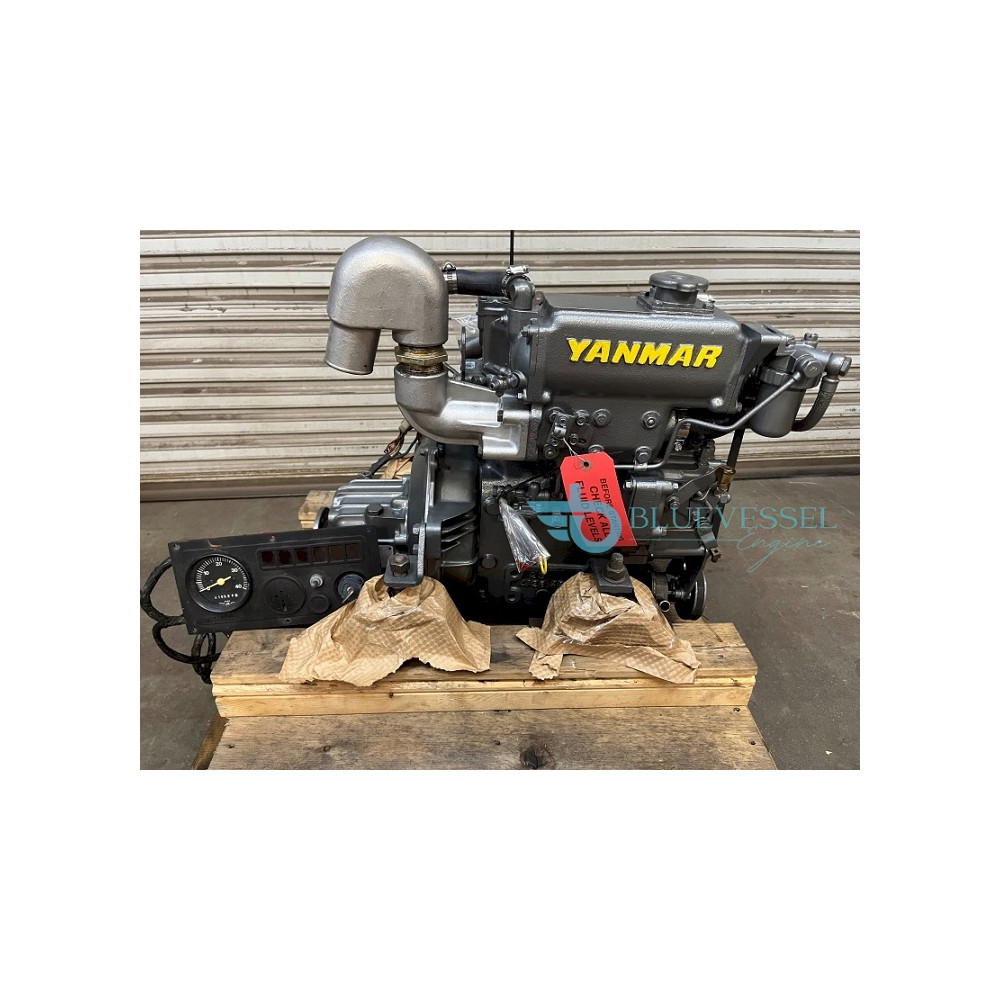

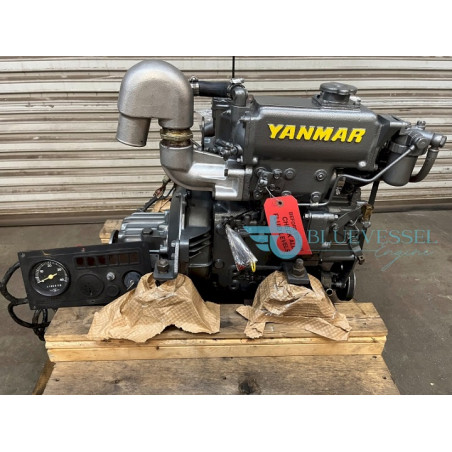

Yanmar 2GM20F Inboard Diesel Engine 18-HP
$1,860.00
Used Yanmar 2GM20F 18-HP Inboard Diesel Engine with Low Hours Engine. Nice and Clean Condition, Engine Fully Serviced. Running Good and Ready to Install !!
Yanmar 2GM20F 0.6L 2-Cylinder 18 HP Inboard Diesel Engine
The Yanmar 2GM20 is a 2-cylinder, 4-stroke vertical water-cooled marine diesel engine, producing approximately 16–18 hp (11.8–13.4 kW) at 3400–3600 rpm. Engine commonly used in small to medium sailboats, available with either raw water or heat exchanger cooling.
SPECIFICATION
Crankshaft Power: 18 hp (13.4 kW) at 3600 RPM (max output)
Continuous Rating: 16 hp (11.9 kW) at 3400 RPM
Displacement: 636 cm³ (0.636 liters)
Bore x Stroke: 75 mm × 72 mm
Cylinder Configuration: 2 cylinders, vertical, 4-cycle
Combustion System: Swirl pre-combustion chamber
Cooling System: Freshwater-cooled closed-loop system with an external heat exchanger
Starting System: Electric start (12V - 1.0 kW starter motor)
Charging System: 12V - 55A alternator/generator
Lubrication: Forced lubrication via trochoid pump
Oil Capacity: 2.0 liters
Coolant Capacity: 3.8 liters plus calorifier
Dry Weight: Approx. 114 kg (251 lbs)
Dimensions (L × W × H): 638 mm × 410 mm × 495 mm
Foundation Width: 370 mm
KEY FEATURES
Indirect Cooling: Uses internal freshwater cooled by raw seawater via a heat exchanger to prevent salt buildup inside the engine block.
Compact Footprint: Engineered with small dimensions to fit tightly into narrow sailboat and small craft engine bays.
Mechanical Simplicity: Relies on high compression and a swirl-type pre-combustion chamber rather than glow plugs for reliable starting.
Optimal Torque: Features a standard reduction gear ratio (such as 2.62:1) designed to deliver strong propeller torque in displacement hulls.
