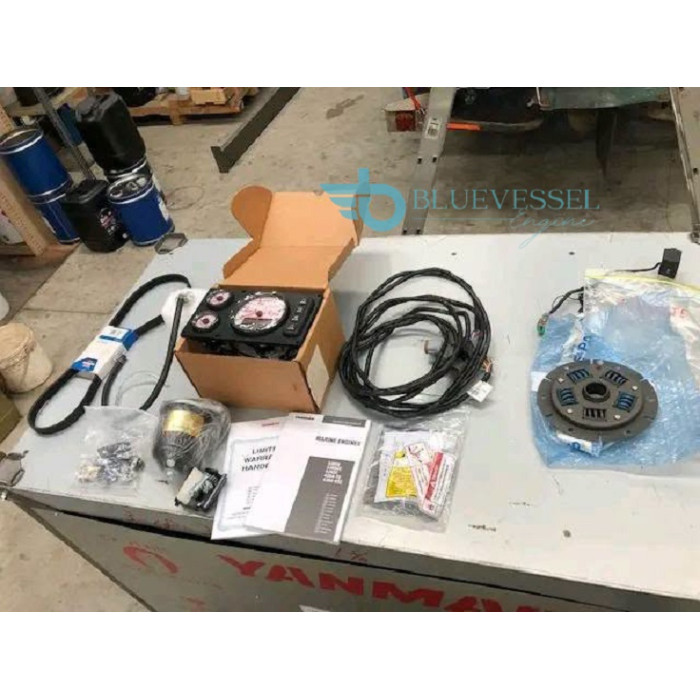

New Yanmar 4JH5E 54-HP Inboard Diesel Engine. Comes with Accessories, Installation Kit, Service Kit, Warranty and Manuals. Ready to Install !!
Yanmar 4JH5E Inboard Diesel Engine 54-HP
$5,600.00
New Yanmar 4JH5E 54-HP Inboard Diesel Engine. Comes with Accessories, Installation Kit, Service Kit, Warranty and Manuals. Ready to Install !!

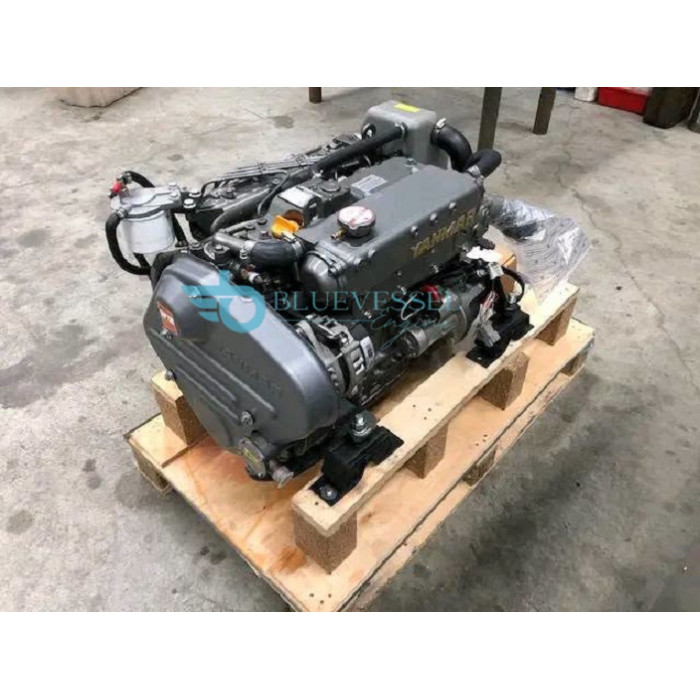

Yanmar 4JH5E 2.19L 4-Cylinder 54 HP Inboard Diesel Engine. Never Installed !
The Yanmar 4JH5E Inboard Diesel Engine is a 54-horsepower, four-cylinder, naturally aspirated marine diesel engine built for sailboats and small pleasure craft.
SPECIFICATION
Type: 4-stroke, vertical, water-cooled diesel engine
Rated Output: 39.6 kW / 53.8 mhp (54 HP) at 3000 RPM
Displacement: 2.19 liters (134 cu. in)
Number of Cylinders: 4 in-line
Bore x Stroke: 88 mm x 90 mm (3.46 in x 3.54 in)
Aspiration: Natural
Combustion System: Direct injection
Dry Weight: 201 kg (443 lbs)
Dimensions: 871 mm x 560 mm x 623 mm
Alternator: 12V – 125A
Cooling System: Freshwater cooling with expansion tank
Starting System: Electric start
Emissions: EU RCD 1, US EPA Tier 2, BSO II, EMC
KEY FEATURES
Natural Aspiration: Delivers smooth, reliable power without a turbocharger, reducing mechanical complexity.
Direct Injection: Optimizes fuel burning for better efficiency and cleaner emissions.
Low Vibration & Noise: Uses a balanced 4-cylinder block and rubber flexible mountings to keep cabin noise and shaking low.
Compact Footprint: Engineered to fit easily into tight engine rooms previously holding older generation small marine diesels.
Mechanical/Electronic Gear Compatibility: Pairs easily with standard mechanical marine gears like the KM35P or saildrive units.
