Brand New Yanmar 4JHYE Inboard Diesel Engine. It include Yanmar YX-10 Standard Marine Gear. Ready to Install !!

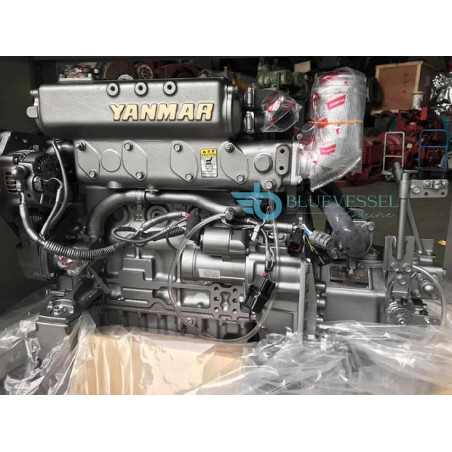

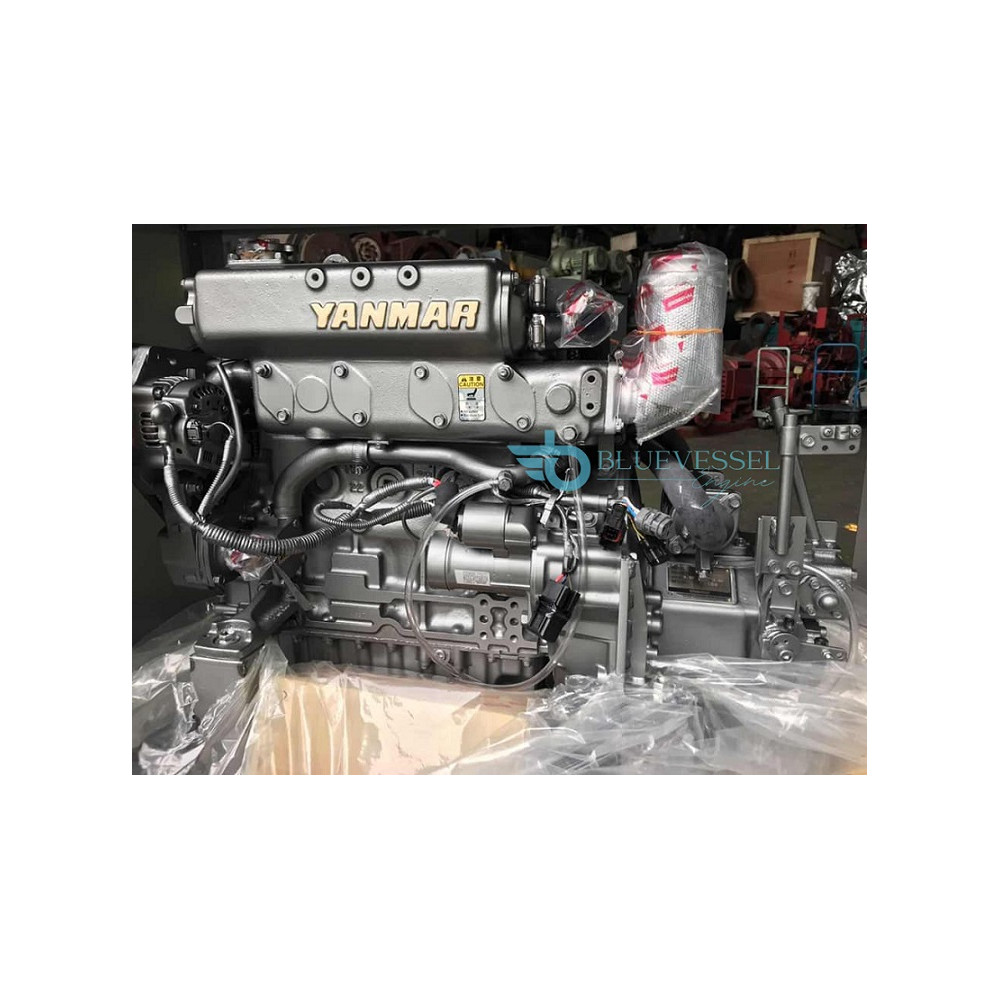

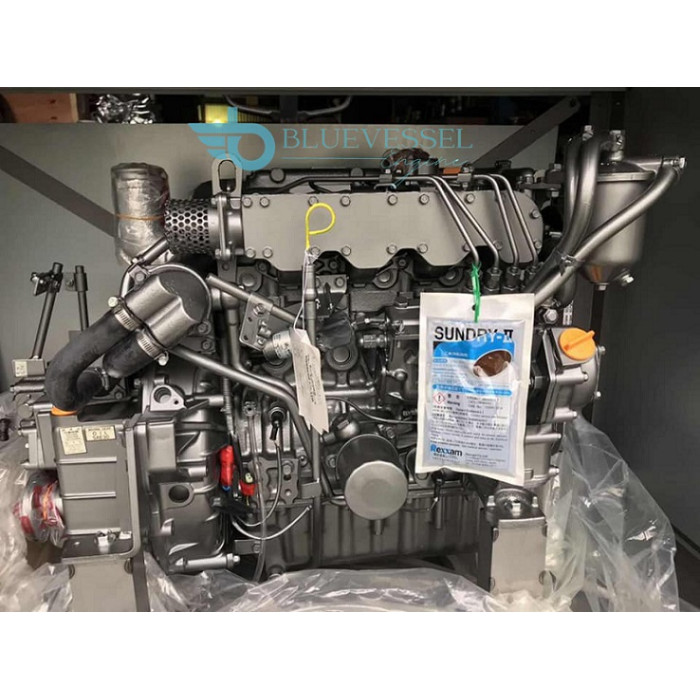

Yanmar 4JHYE Inboard Diesel Engine 35-HP
$4,560.00
Brand New Yanmar 4JHYE Inboard Diesel Engine. It include Yanmar YX-10 Standard Marine Gear. Ready to Install !!
New Yanmar 4JHYE 1.644 L 4-Cylinder 35 HP Inboard Diesel Engine. Never Installed!
The Yanmar 4JHYE is a 4-cylinder, 4-stroke, naturally aspirated, high-speed marine diesel engine, commonly used in passenger ferries, fishing boats, and yachts. It offers a direct injection combustion system with a 1.644L displacement, producing 25.7–29.4 kW (35–38 mhp) at 3400–3600 rpm.
SPECIFICATION
Number of Cylinders: 4 cylinders
Bore x Stroke: 78 mm x 86 mm
Displacement: 1.644 liters
Combustion System: Direct injection
Aspiration: Naturally aspirated
Rated Output (M Rating): 25.7 kW (35 mhp) at 3400 rpm
Rated Output (L Rating): 29.4 kW (38 mhp) at 3600 rpm
Starting System: Electric motor (12V 1.8kW)
Cooling System: Heat exchanger
Marine Gear: Hydraulic (YX Series clutch)
Dry Mass: 243 kg (with YX-10 gear)
Dimensions (L x W x H): 916 mm x 545 mm x 659 mm (with YX-10 gear)
KEY FEATURES
High Combustion Efficiency: Direct injection technology maximizes fuel economy and lowers fuel costs significantly.
Compact Low Profile: Computer-analyzed low line profile fits easily into tight engine rooms and improves boat design flexibility.
Smooth YX Series Clutch: Delivers quiet, shock-free gear changes between forward, neutral, and reverse without scaring fish during operation.
Standard Trolling Device: Allows precise propeller speed adjustment independent of engine speed, perfect for fixed-point sailing or slow trolling without overheating.
Simplified Maintenance: Maintenance components—including lubrication oil and fuel filters, the dipstick, drain ports, and the fuel feed pump—are grouped together on one operation side.
