Refurbished Volvo Penta D4-230 With Aquamatic DPI Duo Sterndrive for Sale. Nice and Clean Condition, Ready to Go !

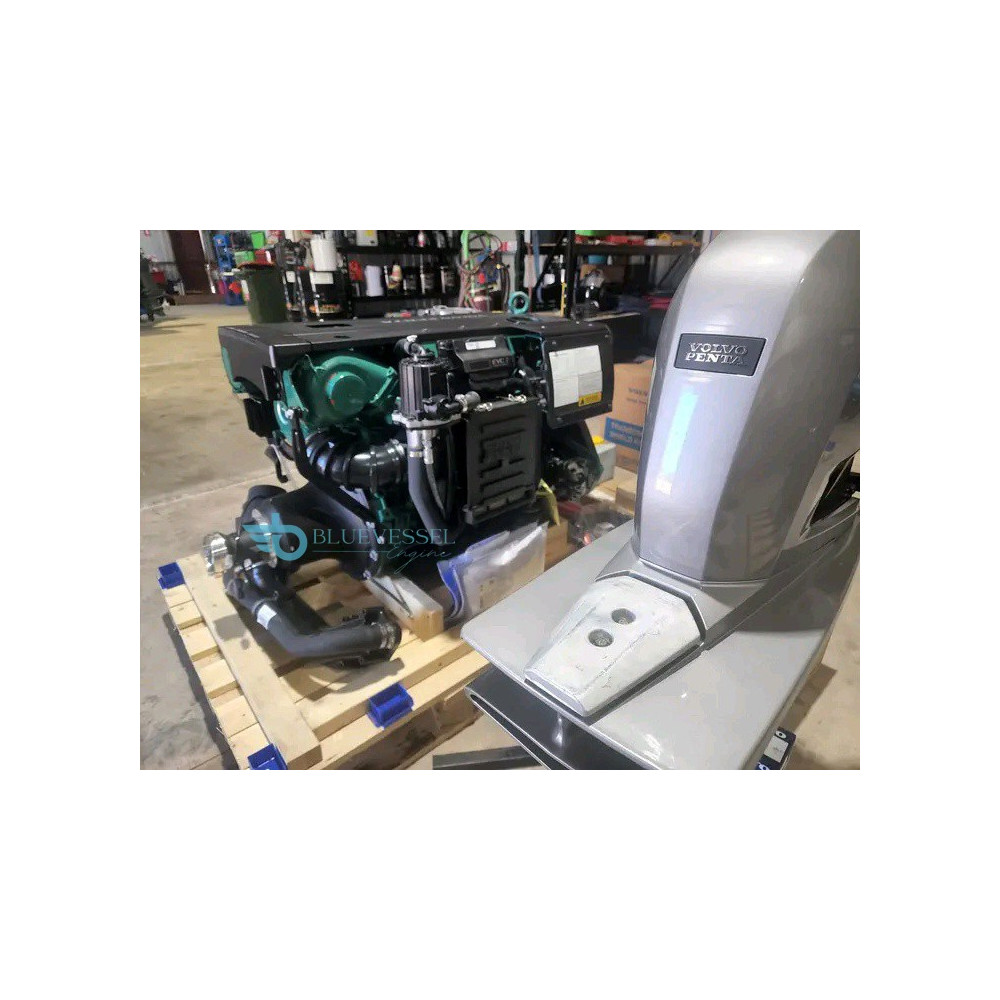

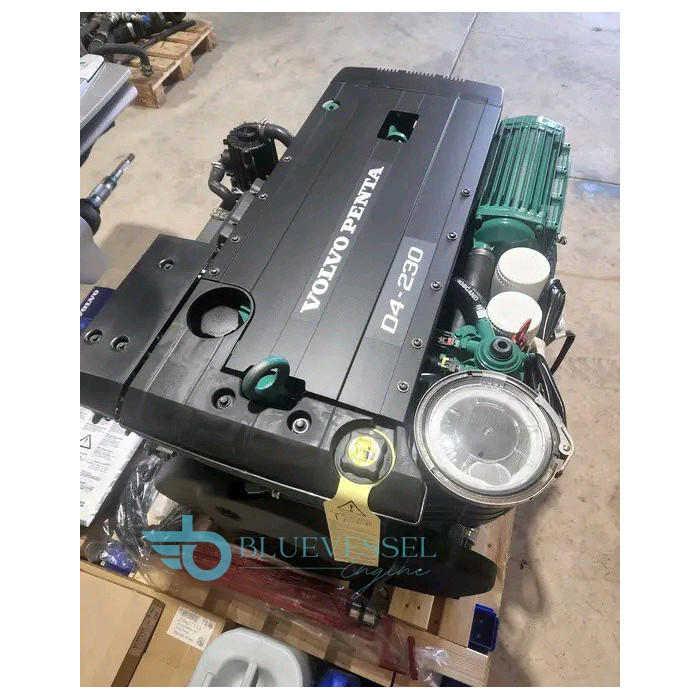

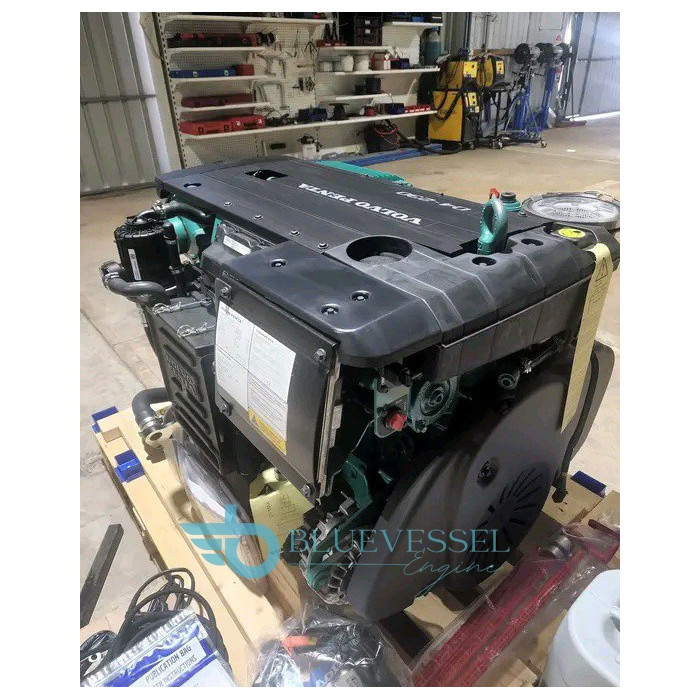

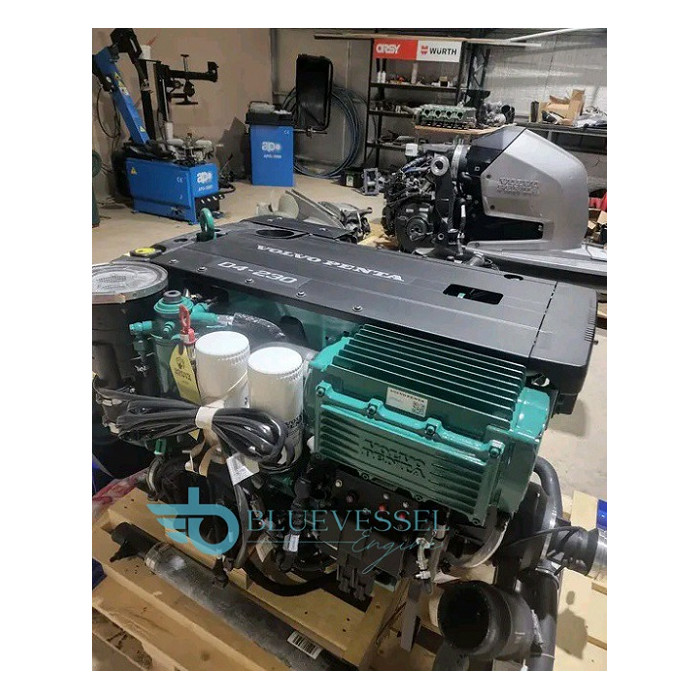

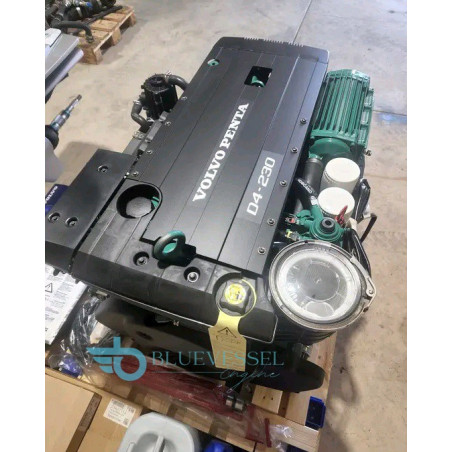

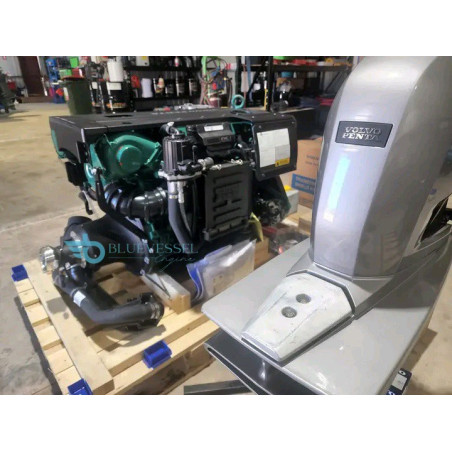

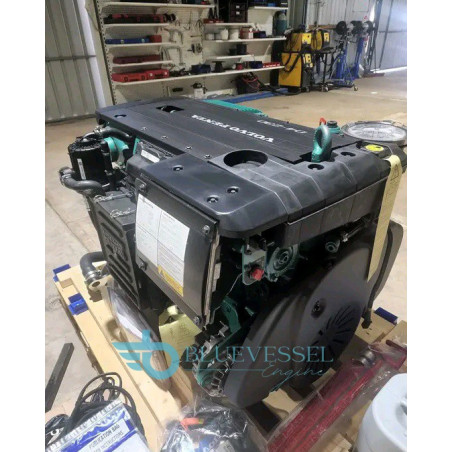

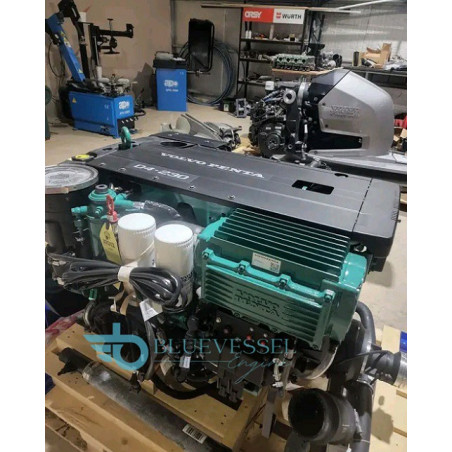

Volvo Penta D4-230 Inboard Diesel Engine w/ DPI Sterndrive
$11,700.00
Refurbished Volvo Penta D4-230 With Aquamatic DPI Duo Sterndrive for Sale. Nice and Clean Condition, Ready to Go !
VOLVO PENTA D4-230 230-HP WITH DPI STERNDRIVE
Volvo Penta D4-230 with DPI sterndrive is an integrated marine propulsion package delivering 230 hp. Designed for high torque, reliability, and quiet, low-vibration operation, it pairs a 3.7-liter common-rail diesel engine with the highly efficient DuoProp DPI drive featuring a hydraulic clutch.
ENGINE TECHNICAL SPECIFICATI0NS
Engine Designation: D4-230 A
Crankshaft Power: 169 kW / 230 hp
Engine Rated Speed: 3,400 rpm
Displacement: 3.7 liters (223.7 in³)
Cylinders: In-line 4-cylinder
Aspiration: Turbocharged with charge air cooler
Fuel System: Electronically controlled, high-pressure common-rail
Dry Weight (with DPI drive): 655 kg (1,444 lbs)
Voltage Options: 12V or 24V
Emissions Compliance: IMO NOx, EU RCD Stage II, US EPA Tier 3

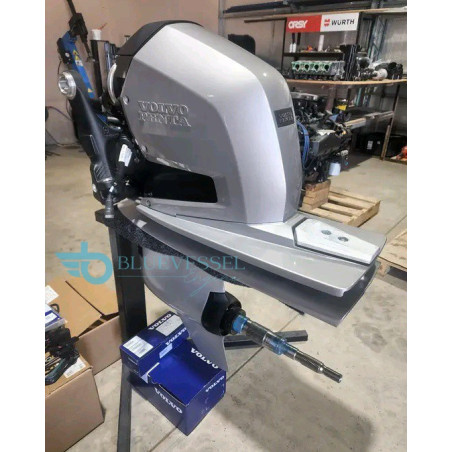

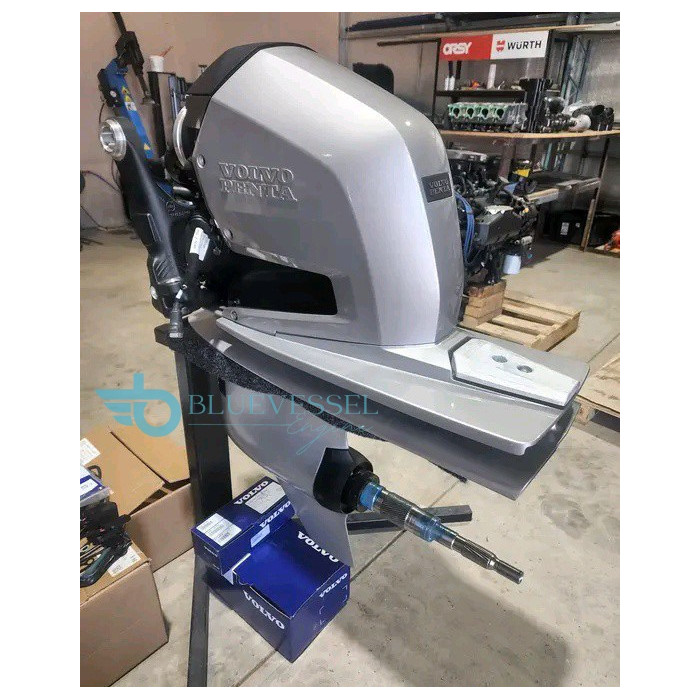

DPI STERNDRIVE SPECIFICATIONS
Drive Unit: Aquamatic DPI Duo
PropGear Ratio: 1.85:1
Clutch: Hydraulic clutch for quiet, smooth, and low-speed maneuvering
Steering: Electronic steering integrated with EVC (Electronic Vessel Control)
Propeller Series: H2 - H10 series
KEY FEATURES & BENEFITS
Electronic Vessel Control (EVC): Provides seamless electronic shift and throttle, digital displays, and access to the easy-to-use Joystick Driving upgrade
Hydraulic Clutch: Enables silent shifting and allows the vessel to idle at very low speeds (trolling mode) with zero clunking
Low Emissions: Optimized for highly efficient fuel combustion, resulting in reduced emissions and odor.
