Used Volvo Penta D4-260I-B 260-HP Inboard Diesel Engine with HS63AE 2.52:1 Ratio Transmission. Nice and Clean Condition and Running Perfectly !!
Volvo Penta D4-260I-B Inboard Diesel Engine 260-HP
$9,800.00
Used Volvo Penta D4-260I-B 260-HP Inboard Diesel Engine with HS63AE 2.52:1 Ratio Transmission. Nice and Clean Condition and Running Perfectly !!

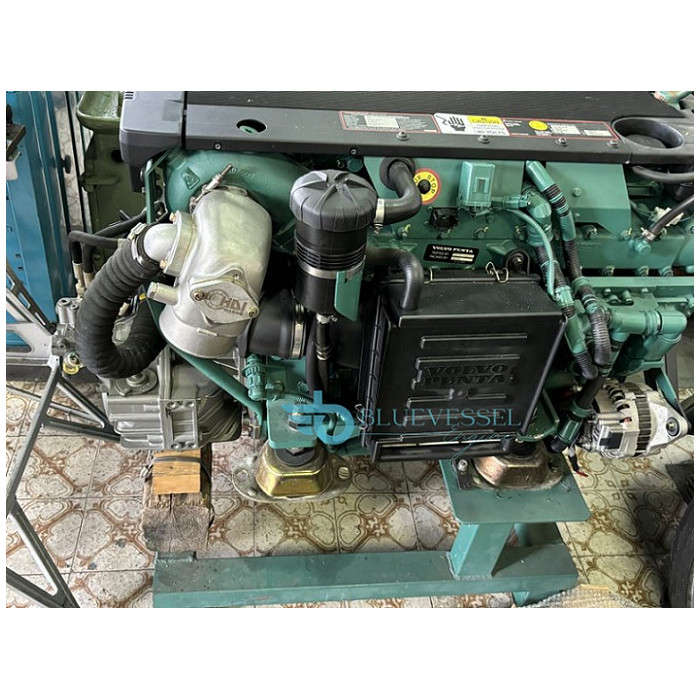

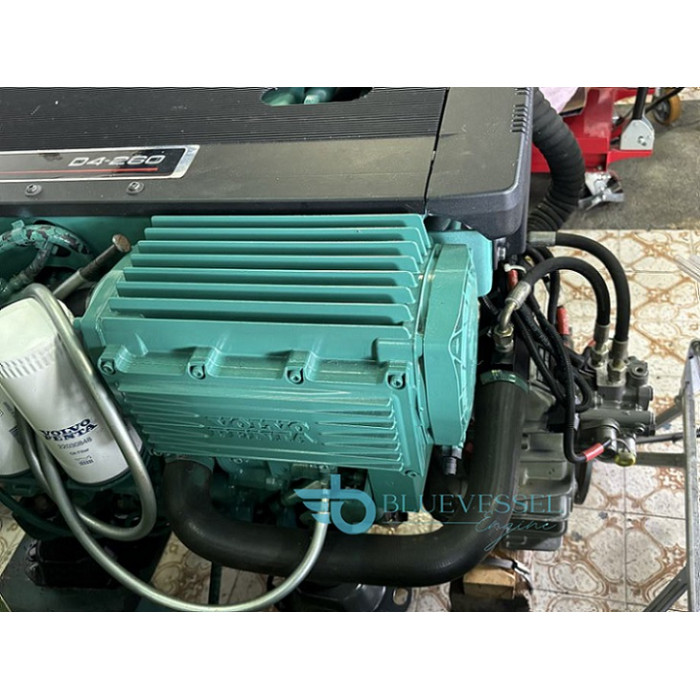

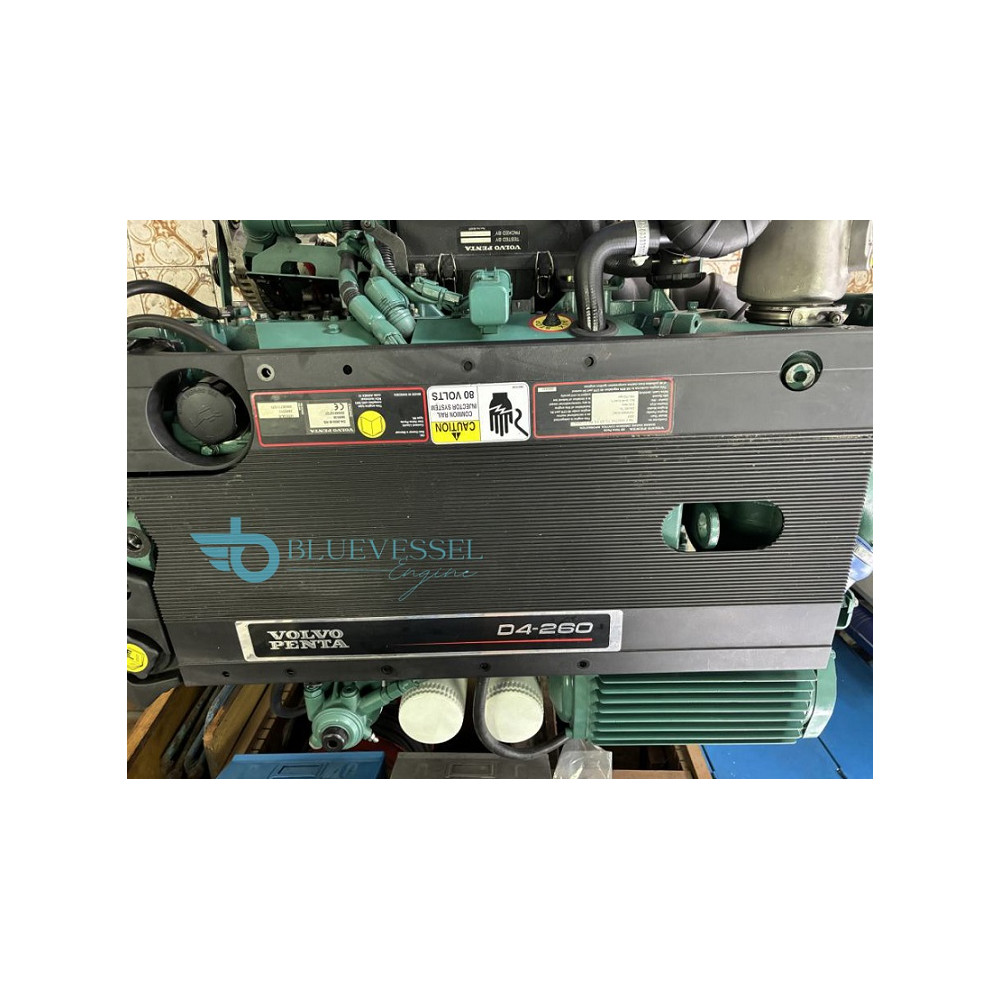

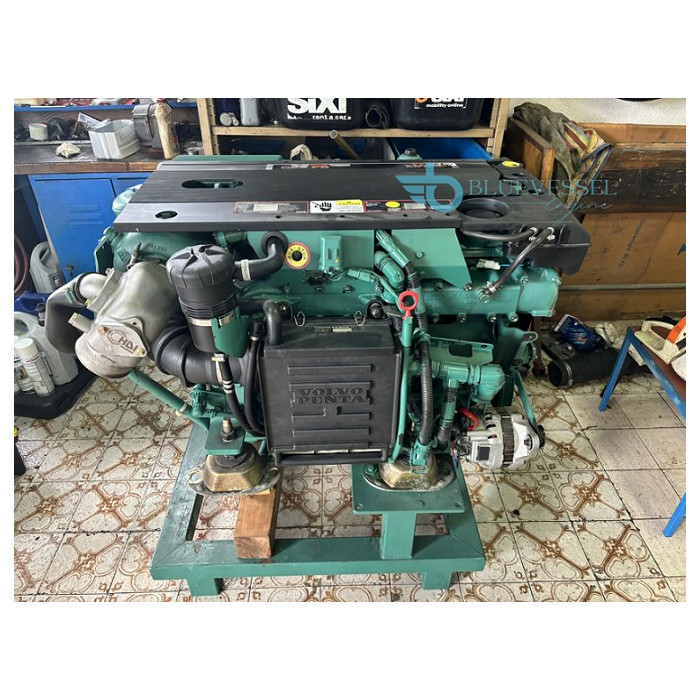

VOLVO PENTA D4-260I-B With HS63AE TRANSMISSION

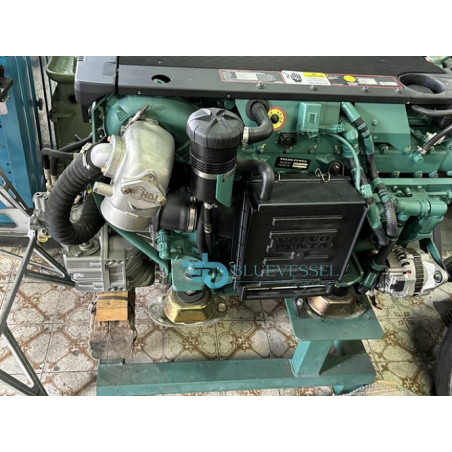

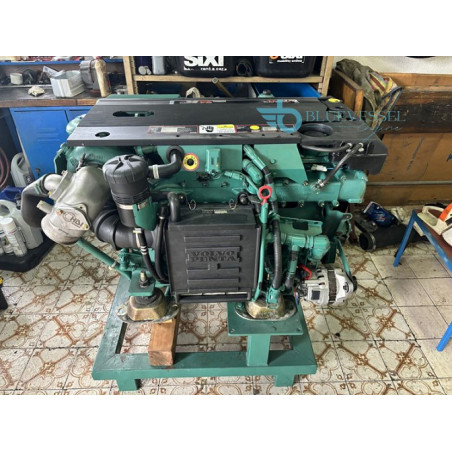

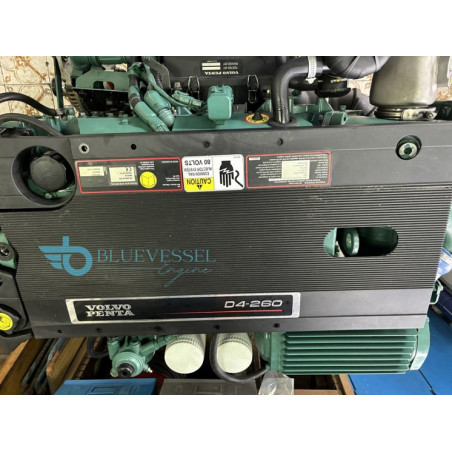

Volvo Penta D4-260I-B is a 3.7-liter, 4-cylinder in-line marine diesel engine. Producing 260 hp at 3,500 rpm, it utilizes common-rail fuel injection, a turbocharger, and a compressor to deliver high torque at low speeds. It is paired with the HS-series hydraulic reverse gear HS63AE 2.52:1 Ratio.
GENERAL SPECIFICATIONS

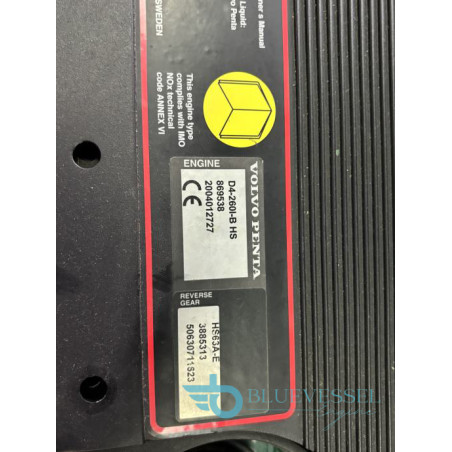

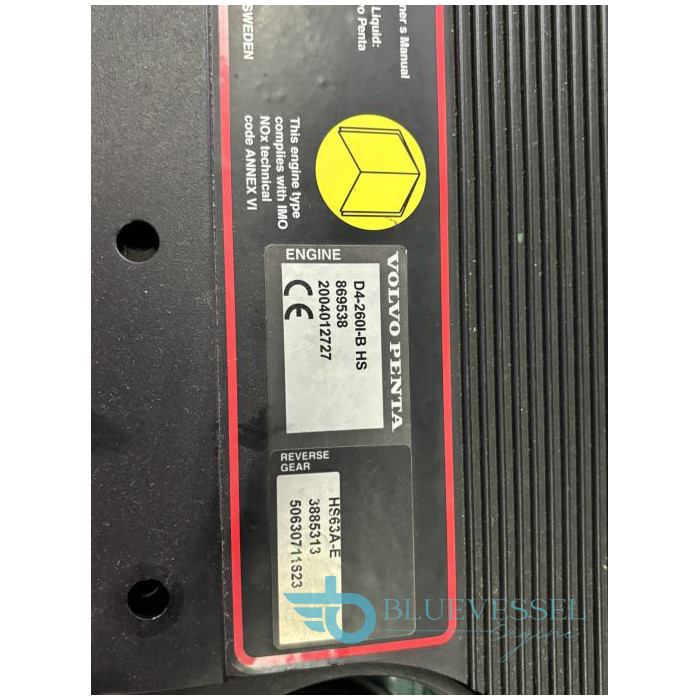

Engine Designation: D4-260I-B
Crankshaft Power: 260 hp (191 kW)
Propeller Shaft Power: 253 hp (186 kW)
Rated Engine Speed: 3,500 rpm
Displacement: 3.7 liters (224 cubic inches)
Cylinders: 4-cylinder in-line
Bore / Stroke: 103 mm / 110 mm (4.05 / 4.33 in)
Compression Ratio: 17.5:1
Aspiration: Turbocharger and charge-air cooler
Alternator: 115 A
Voltage: 12V
Emissions Compliance: IMO NOx, EU RCD Stage II, and US EPA Tier 3

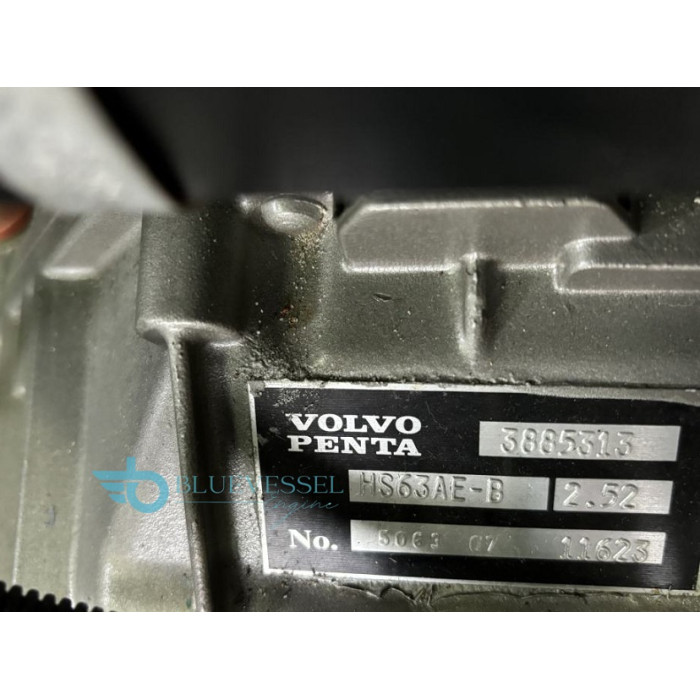

Transmission: HS63AE 2.52:1 Ratio
WEIGHT & DIMENSIONS
Dry Weight (Engine Only): 482 kg (1,063 lbs)
Dry Weight (with HS63AE transmission): 558 kg (1,230 lbs)
Total Length (with gearbox): 1,156 mm (45.5 in)
FUEL & LUBRICATION SYSTEM
Fuel System: High-pressure, electronically controlled common-rail
Fuel Types: Diesel, HVO (Hydrotreated Vegetable Oil)
Oil System: Seawater-cooled tubular oil cooler
