Used Mercury Racing 525 EFI 131 hours. Nice and clean condition. Good compression/Drop in ready. Running Perfectly and No Issuess at All.

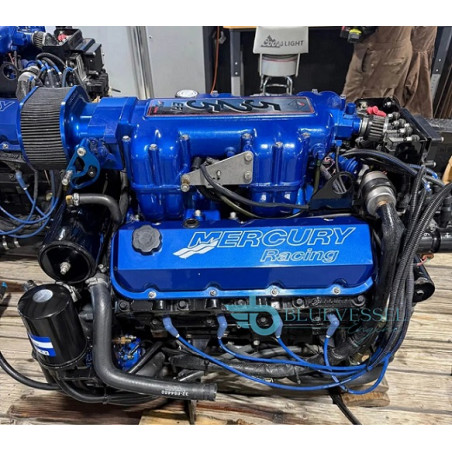

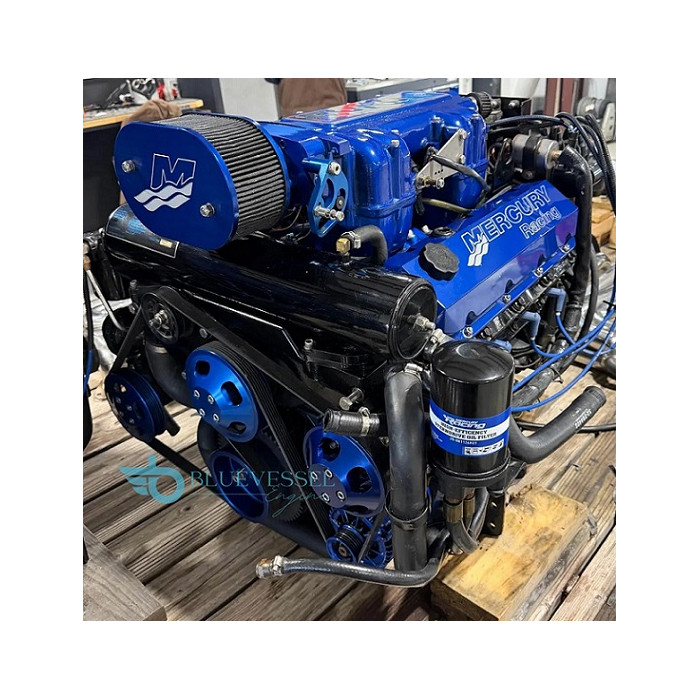

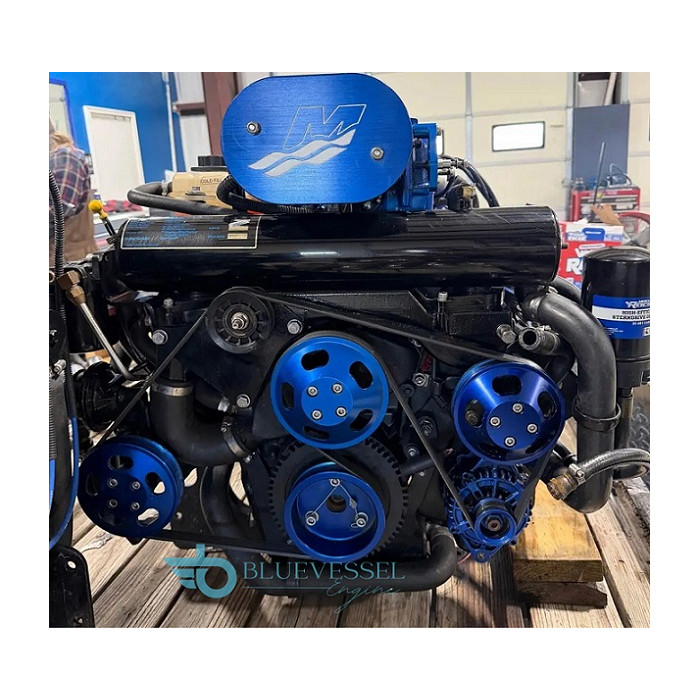

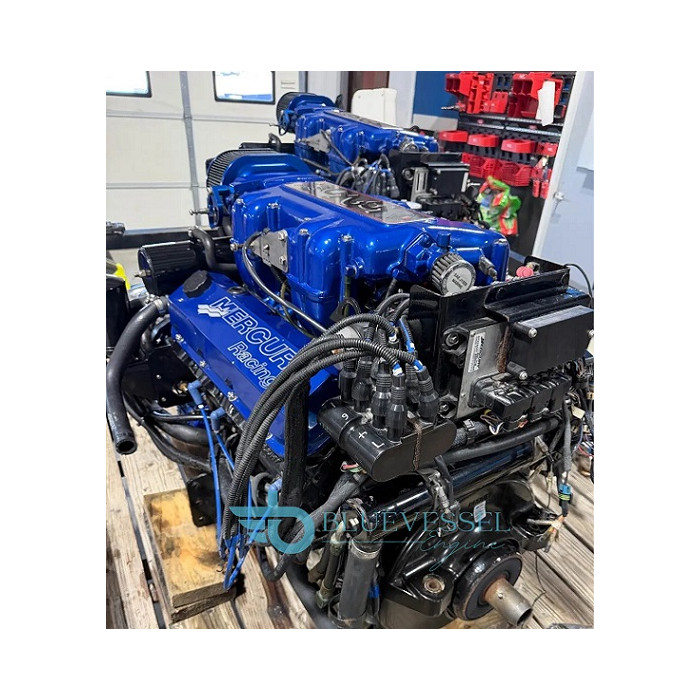

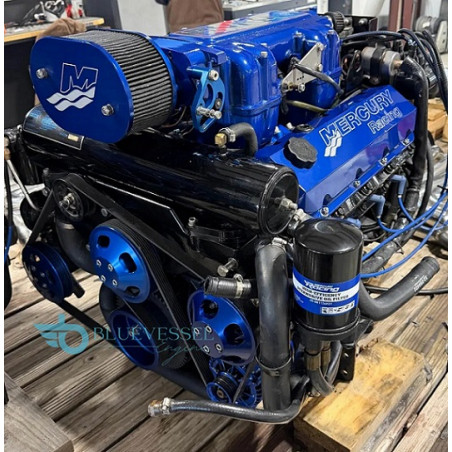

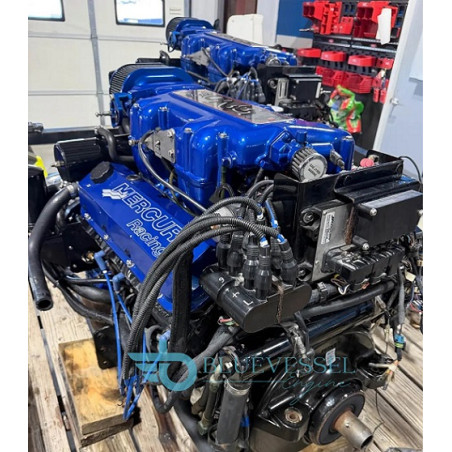

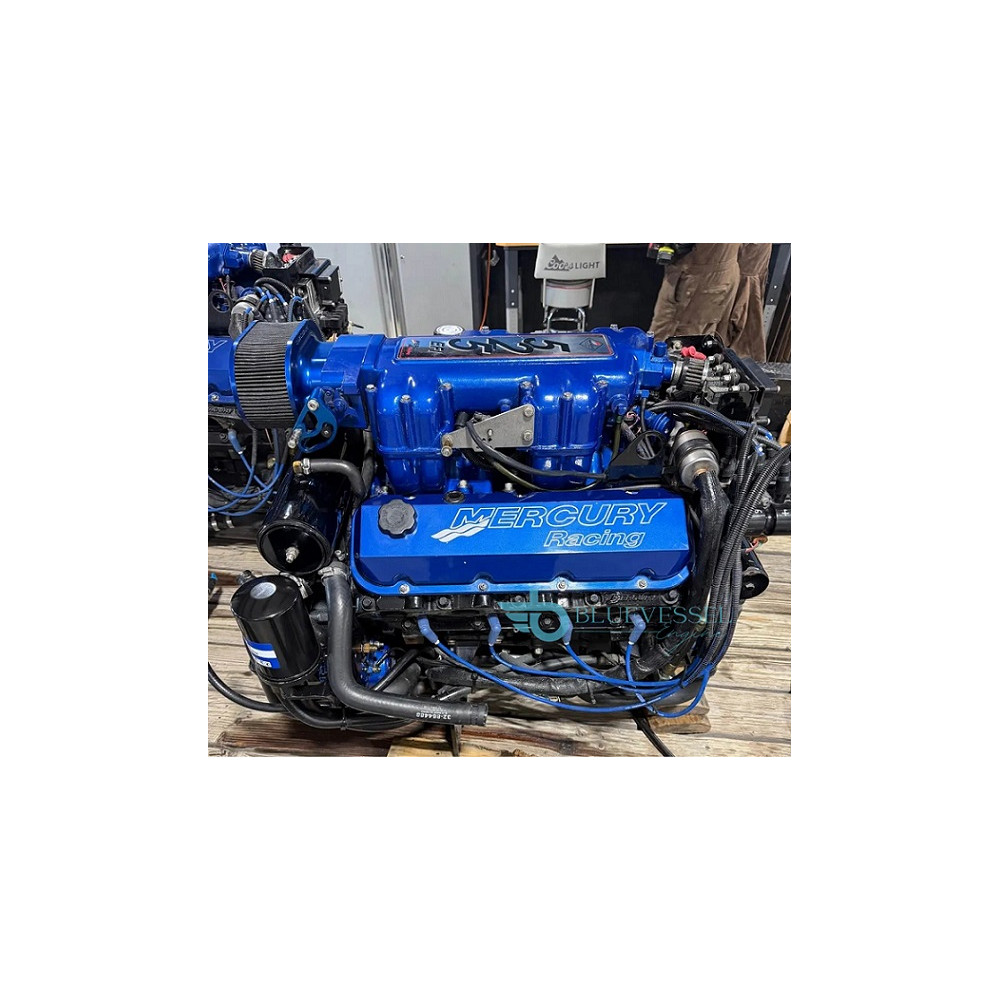

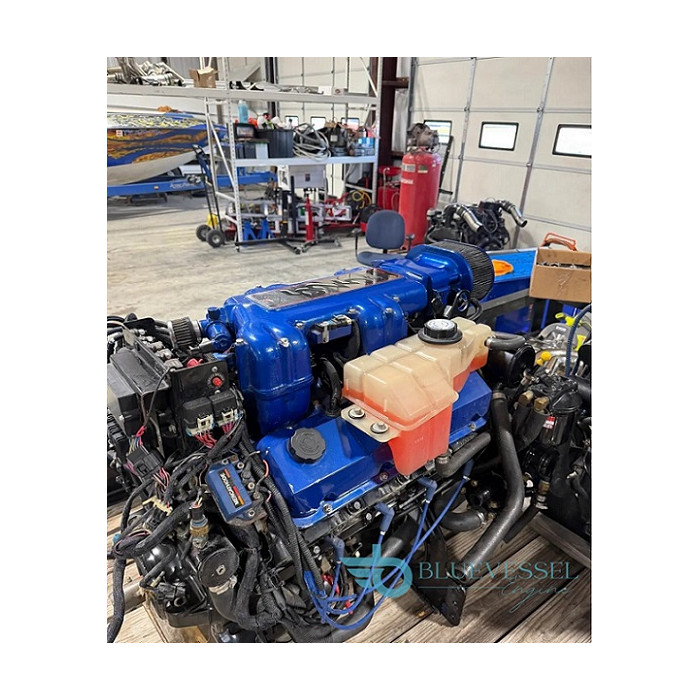

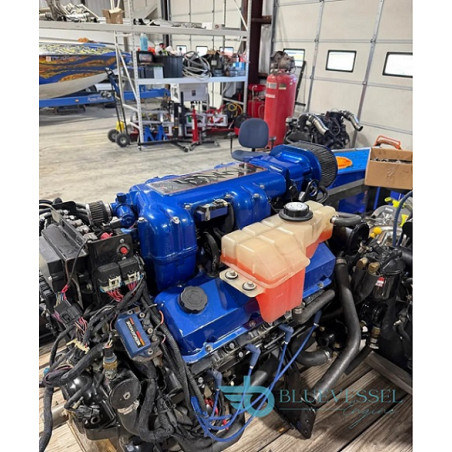

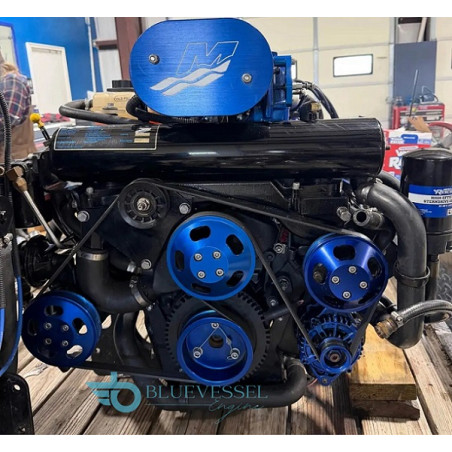

Mercury Racing 525 EFI Inboard Gasoline Engine 525-HP
$9,550.00
Used Mercury Racing 525 EFI 131 hours. Nice and clean condition. Good compression/Drop in ready. Running Perfectly and No Issuess at All.
MERCURY RACING 525 EFI 8.2L 525-HP (V8)
Mercury Racing HP525 EFI is a naturally aspirated 8.2-liter (502 cid) V8 marine engine. Rated at 525 horsepower, it features custom Edelbrock aluminum cylinder heads, multi-port fuel injection (MPI), and the Motorola PCM microprocessor to optimize engine management
ENGINE SPECIFICATION
Horsepower: 525 hp (391 kW)
Full Throttle RPM: 4800–5200 RPM
Displacement: 8.2 L / 502 CID
Cylinders: V8
Bore & Stroke: 4.47 in × 4.00 in (113 mm × 102 mm)
Compression Ratio: 8.75:1
Fuel Requirements: 87 Posted Octane (R+M)/2 (92 RON)
Ignition System: PCM 03 Distributorless
DIMENSIONS & WEIGHT
Length: 34.2 inches (868 mm)
Width: 32.9 inches (835 mm)
Height: 23.7 inches (601 mm)
Weight: 1,201 lbs (545 kg)
HARDWARE & ELECTRONICS
Induction: Multi-port Fuel Injection (MPI)
Cooling System: Factory-installed closed-cooling system with 5-year coolant
Alternator: 65 Amp / 917 Watts
Charging System: 105 amp (latest spec)
SmartCraft Engine Guardian: Continually monitors engine conditions to prevent potential damage
DRIVE COMPATIBILITY
Standard Drives: Bravo One XR, Bravo One XR Sport Master
Optional Drives: Bravo Three XR, Dry-Sump Six Drive
Drive Gear Ratios: Bravo (1.26:1, 1.35:1, 1.50:1); Dry-Sump Six (application dependent)
