Rebuilt Yanmar 6GHD-ST 430-HP Inboard Diesel Engine. Perfect Condition, Ready to Installed !!
Yanmar 6GHD-ST Inboard Diesel Engine 430-HP
$12,350.00
Rebuilt Yanmar 6GHD-ST 430-HP Inboard Diesel Engine. Perfect Condition, Ready to Installed !!

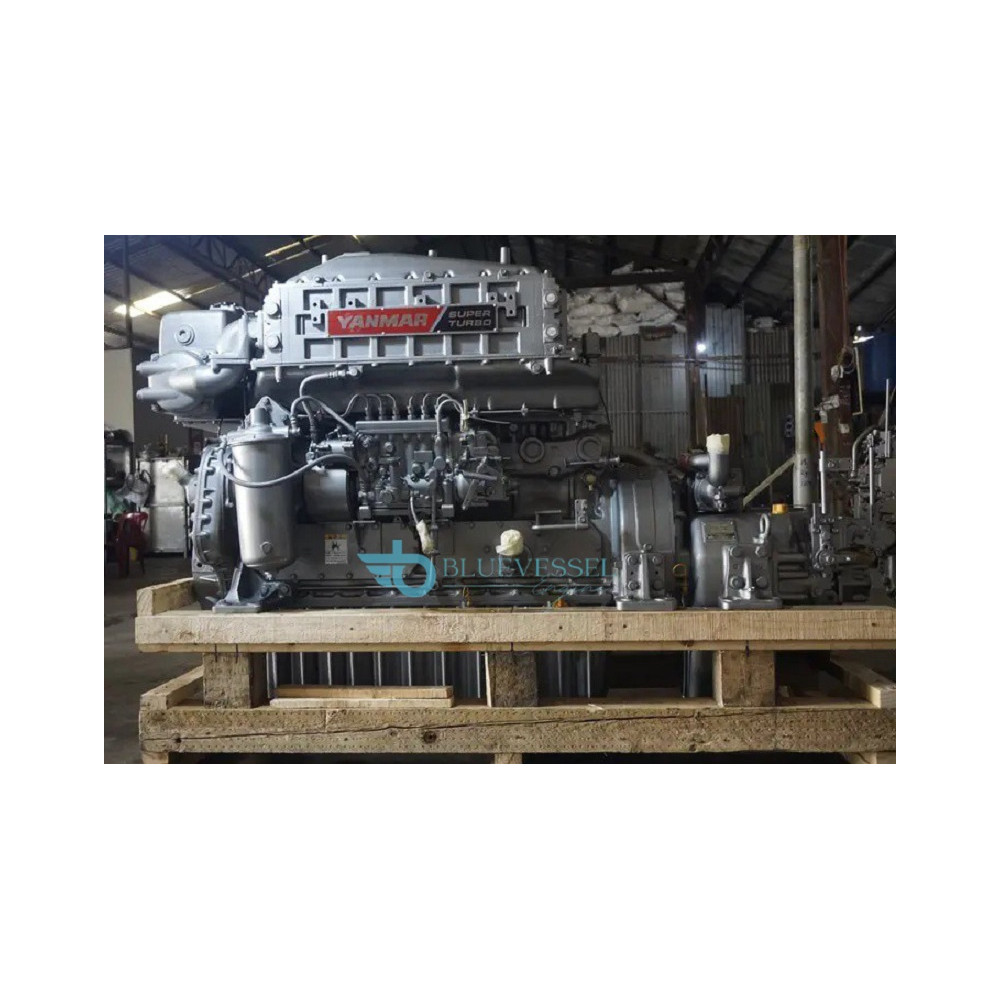

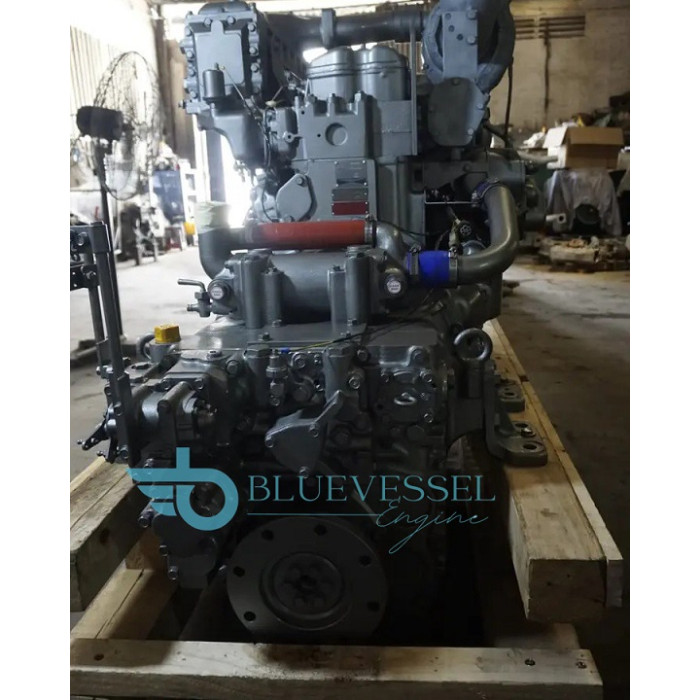

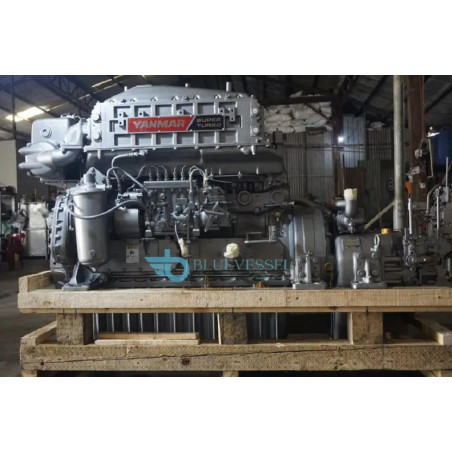

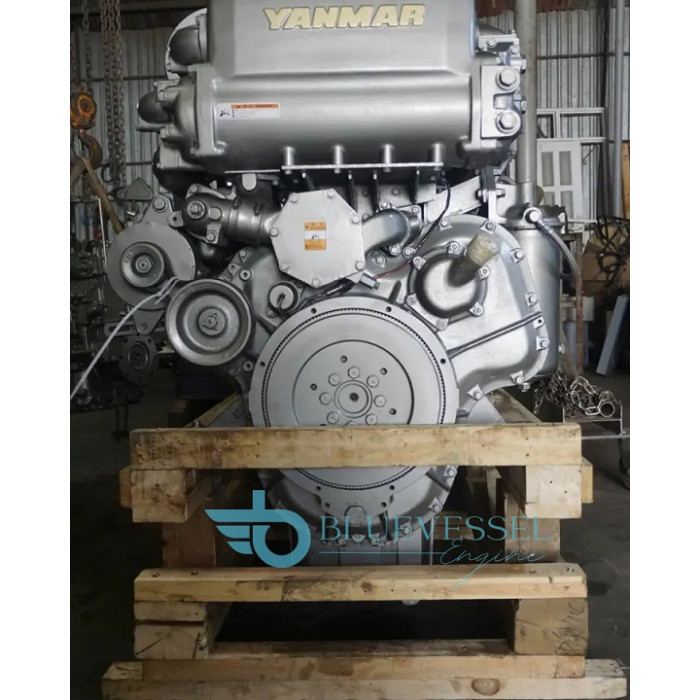

Rebuilt Yanmar 6GHD-ST 9.2L 6-Cylinder 430 HP Inboard Diesel Engine
The Yanmar 6GHD-ST is a 6-cylinder, high-speed marine diesel engine, primarily used in commercial vessels, that typically delivers a maximum power of 430 mhp. It belongs to the Yanmar GH series of medium-sized engines, known for high power density and reliable performance in commercial applications.
SPECIFICATION
Engine Type: 4-stroke, vertical in-line, water-cooled diesel engine
Cylinders: 6
Maximum Rated Output: 430 mhp (430PS)
Rated Speed: 2200–2600 RPM (model variant dependent)
Displacement: 9.171 Liters
Bore x Stroke: 117.9 mm x 140 mm
Combustion System: Direct Injection
Aspiration: Turbocharged
Cooling System: Freshwater heat exchanger
Dry Mass: 1200 kg
Starting System: Electric motor (24V)
KEY FEATURES
High Power Density: Known for providing high horsepower in a relatively compact 6-cylinder block.
Commercial Reliability: Designed for durability with a ladder frame structure, contributing to low vibration and noise.
Efficiency: Features high-pressure turbochargers, providing high power while maintaining low fuel consumption.
Maintenance: Features large inspection windows on the side of the engine block for in-situ maintenance.
