Used Yamaha 40HP Carbureted 4 Stroke Outboard Motor With 20" Shaft and Big Tiller Handle. New Gear Oil, New Engine Oil / Filter & Carburetors Have just been Serviced and Ready to Go !!

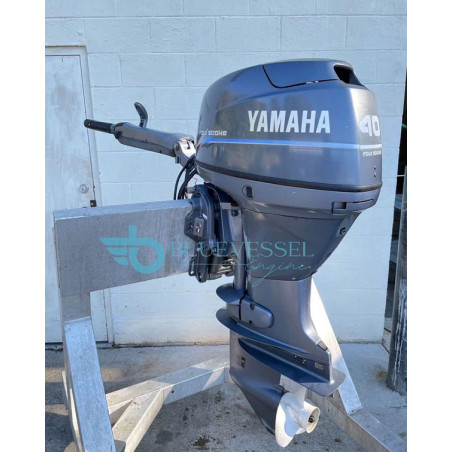

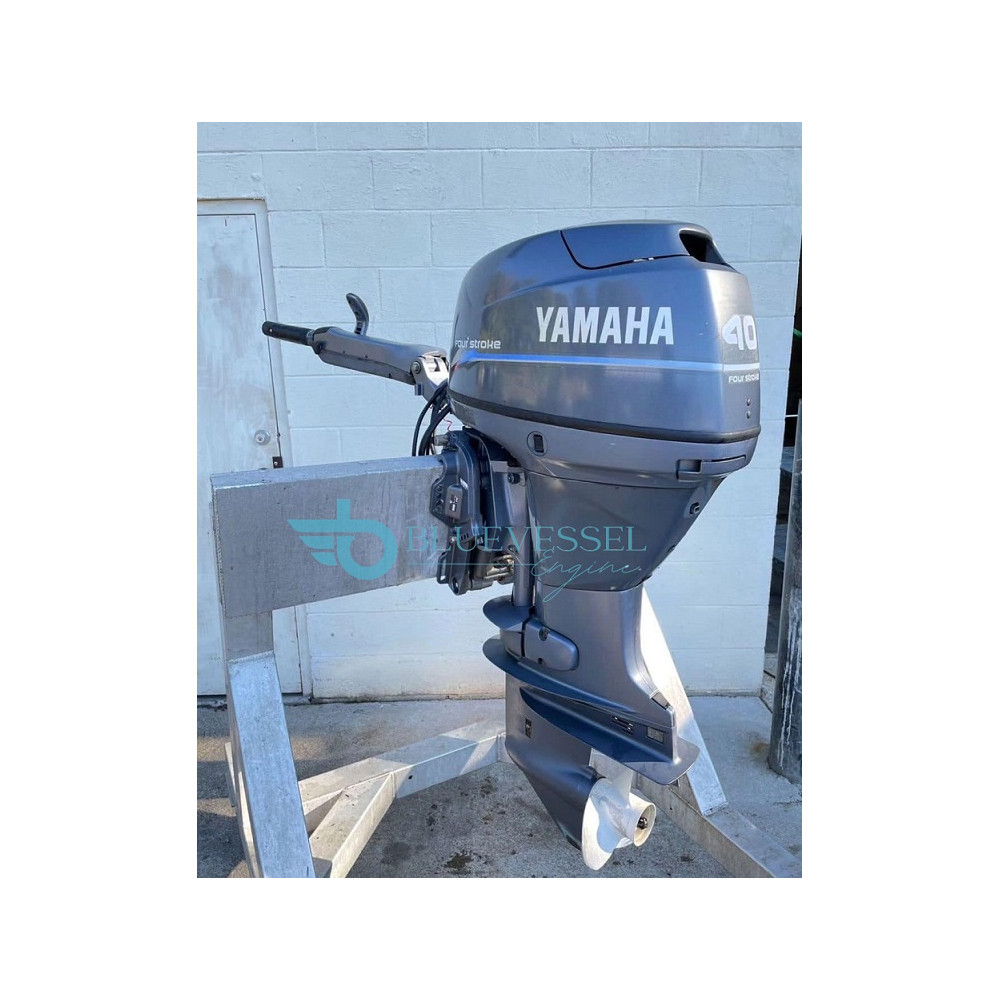

Yamaha 40 HP 4-Stroke Outboard Motor F40TLR
$1,040.00
Used Yamaha 40HP Carbureted 4 Stroke Outboard Motor With 20" Shaft and Big Tiller Handle. New Gear Oil, New Engine Oil / Filter & Carburetors Have just been Serviced and Ready to Go !!
Yamaha F40TLR 4-Stroke 3-Cylinder 40 HP Outboard Motor
The Yamaha F40TLR is a 40-horsepower, mid-range four-stroke outboard motor. Characterized by its TLR model designation, it features T (Power Trim and Tilt), L (20-inch Long Shaft), and R (Remote Mechanical Control, Electric Start).
SPECIFICATION
Engine Type: 4-Stroke, SOHC In-line 3-Cylinder (6 valves)
Displacement: 747 cc (45.6 cu. in.)
Bore x Stroke: 65.0 x 75.0 mm (2.56 x 2.95 in.)
Prop Shaft Horsepower: 40 hp @ 5,500 RPM
Full Throttle RPM Range: 5,000 ~ 6,000 RPM
Fuel Induction System: Multi-Point Electronic Fuel Injection (EFI)
Ignition System CDI: Microcomputer
Starting System: Electric with PrimeStart™ automatic enrichment
Lubrication / Oil Capacity: Wet Sump / 1.7L (1.5L without filter change)
Recommended Oil: Yamalube® 4M
Gear Ratio: 2.00:1
Gear Shift: Forward, Neutral, Reverse (Mechanical)
Exhaust: Through-Propeller Hub
Alternator Output: 17 Amp @ Wide Open Throttle
Dry Weight: ~98 kg (214–216 lbs)
Shaft Length: 20 inches (Long Shaft)
Recommended Fuel: 87 Octane (Maximum 10% Ethanol blend)
KEY FEATURES
Electronic Fuel Injection (EFI): Uses multi-point fuel injectors managed by an Engine Control Module (ECM). The system uses an array of on-engine sensors to constantly optimize fuel-to-air atomization, maximizing cold-start precision, response, and fuel efficiency.
Variable Trolling Speed (VTS): Allows the operator to fine-tune idling and trolling speed between 650 and 900 RPM in precise 50 RPM increments via a digital gauge button.
Single Throttle Valve Design: Routes incoming air through a singular, uniform throttle valve into individual pulse-tuned intake tracks, improving air density distribution and mid-range torque.
Fresh Water Flushing Device: Offers an easily accessible external garden hose port so owners can flush salt, silt, and debris out of the internal cooling passages without needing to run the engine.
Digital Gauge Compatibility: Fully compatible with Yamaha Command Link and Digital Network Gauges for real-time monitoring of RPM, running hours, fuel flow, oil pressure, and tilt metrics.
