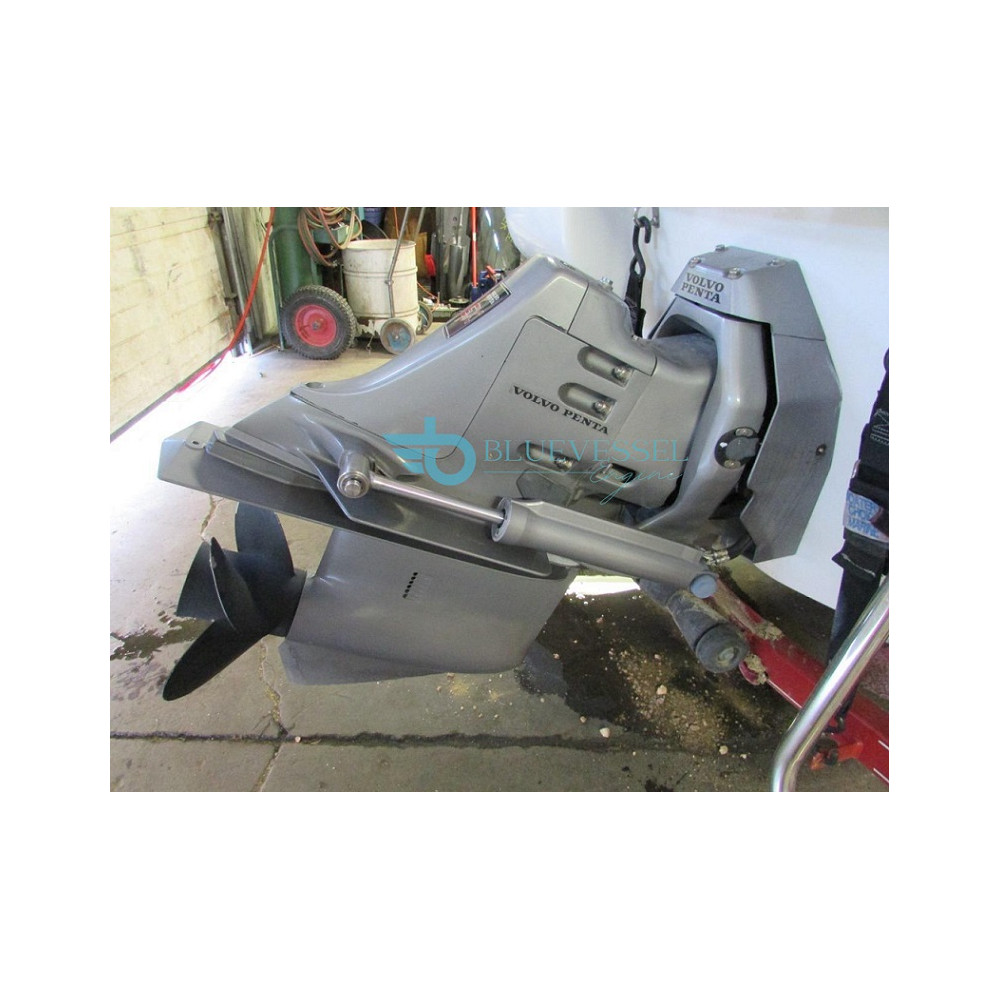

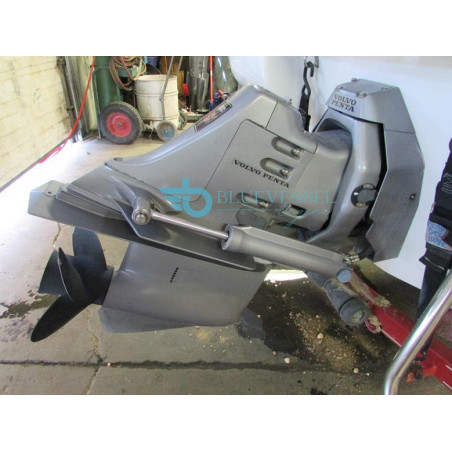

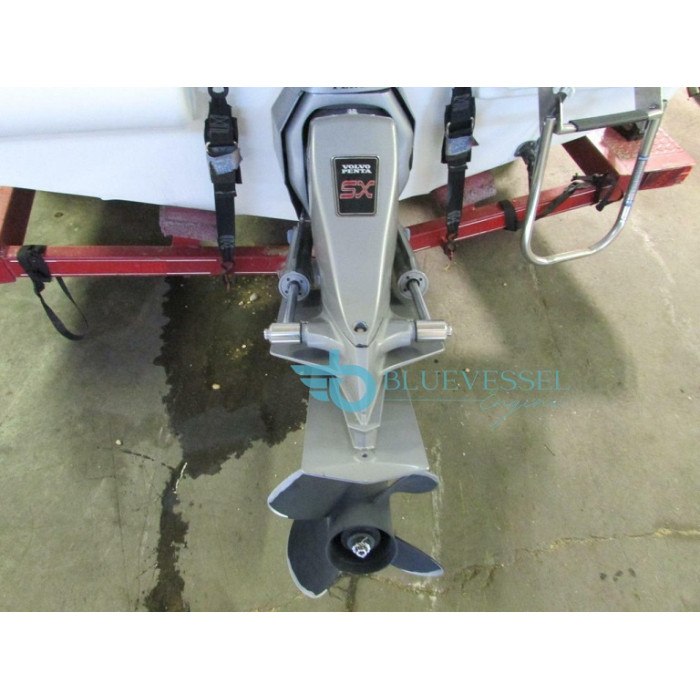

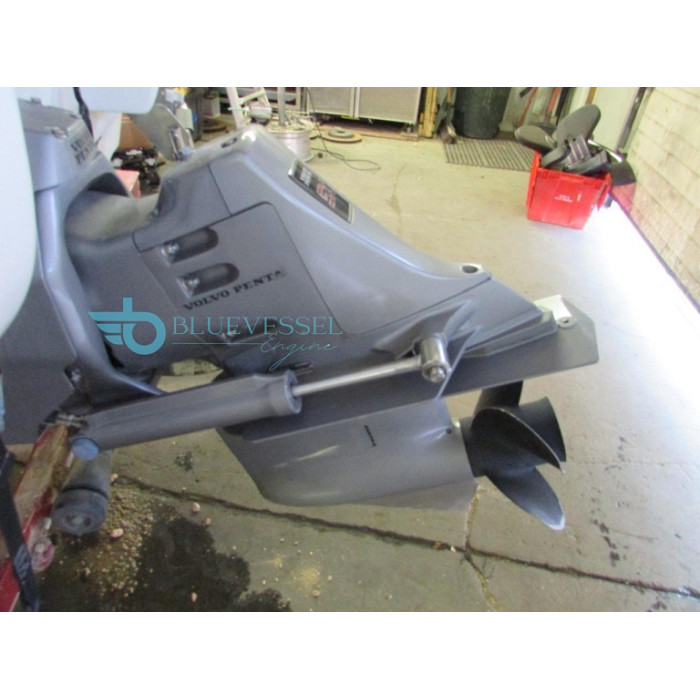

Used Volvo Penta SX-M complete sterndrive assembly to be removed from a 2002 Glastron SX175. Item has normal wear with minor scratches on lower unit. Ready to Install !!
Volvo Penta SX-M 1.97:1 Ratio Sterndrive
$1,670.00
Used Volvo Penta SX-M complete sterndrive assembly to be removed from a 2002 Glastron SX175. Item has normal wear with minor scratches on lower unit. Ready to Install !!
Volvo Penta SX-M 1.97:1 Ratio Sterndrive
The Volvo Penta SX-M sterndrive is a single-propeller assembly commonly used with 4-cylinder or V6 engines, featuring a gear tooth count in the lower unit. It uses synthetic gear oil (API GL-5, SAE 75W-90) with a capacity of approximately 2.1 liters (2.2 quarts). It features "Silent Shift" technology and requires 11-18 inch-pounds of rolling torque for proper assembly.
SPECIFICATION
Gear Ratio: 1.97:1 (17/27 tooth count)
Drive Type: SX-M (Single Propeller)
Applications: Often used with 3.0L 4-cylinder engines
Oil Type: Synthetic gear oil, API GL-5, SAE 75W-90
Oil Capacity: 2.1 Liters (2.2 quarts)
Features: "Silent Shift" cone clutch, standard or counter-rotation capability
Compatibility: Interchangeable with later model Cobra SX or SX-A lower units
REBUILT/ASSEMBLY SPECIFICATION
Rolling Torque: 11 to 18 inch-pounds (15 inch-pounds target)
Gear Set: (17 tooth pinion/27 tooth gear)
